1. High power up to 670W,Up to 21.6% module efficiency with high density interconnect technology
2. 2% first year degradation,0.55% Annual Power Attenuation
Brand :
TrinaMax. Efficiency :
21.6%Number of Cells :
132cellsDimension :
2384×1303×35mmWeight :
33.6kgJunction Box :
IP68 Rated, 3 DiodeCable :
4.0mm2, Portrait: 300mm / Landscape: 1300mmWind/Snow Load: :
2400Pa/5400PaConnector :
MC4 CompatiblePower Range :
660-670wWarranty :
25 YearsPayment :
T/T,Credit Card, Paypal, Western UnionCertification :

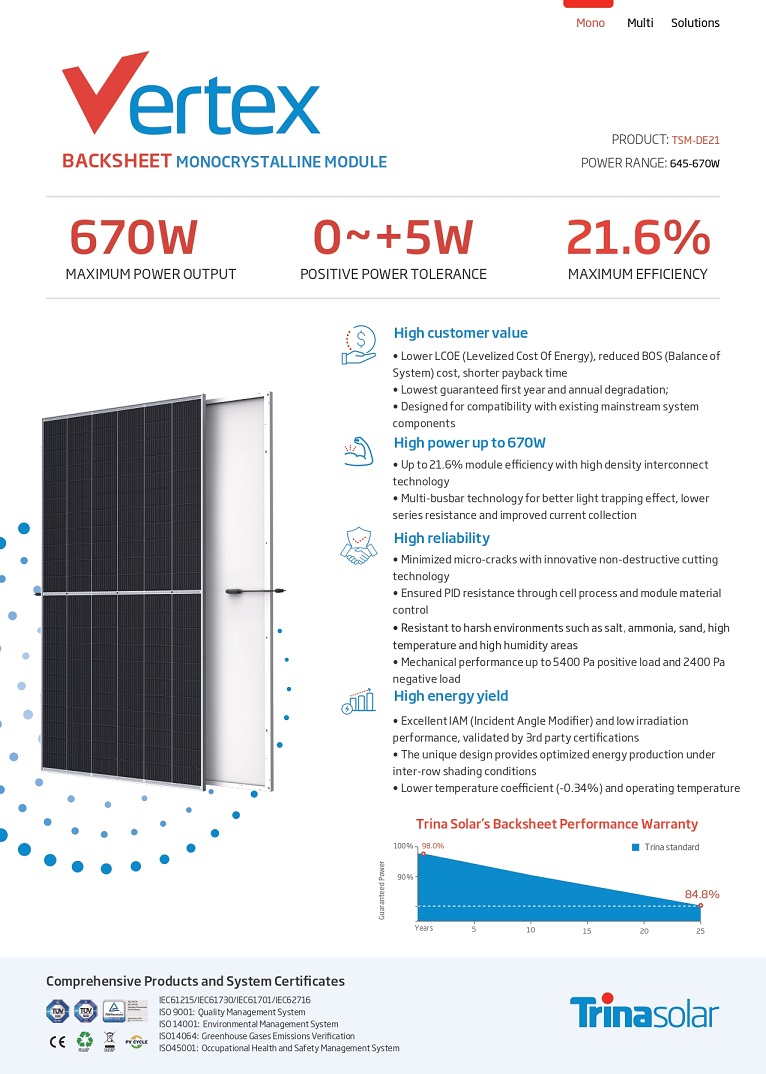

IEC/CE/TUV/CSA/CEC/ULHigh power up to 670W
• Up to 21.6% module efficiency with high density interconnect technology
• Multi-busbar technology for better light trapping effect, lower series resistance and improved current collection
High reliability
Minimized micro-cracks with innovative non-destructive cutting technology
• Ensured PID resistance through cell process and module material control
• Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas
• Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load
High energy yield
• Excellent IAM (Incident Angle Modifier) and low irradiation performance, validated by 3rd party certifications
• The unique design provides optimized energy production under inter-row shading conditions
• Lower temperature coefficient (-0.34%) and operating temperature
Electrical Specification
Module Type | Vertex 660W | Vertex 665W | Vertex 670W |
Maximum power (Pmax/W) | 660 | 665 | 670 |
Open-circuit voltage (Voc/V) | 45.7 | 45.9 | 46.1 |
Short circuit current (Isc/A) | 18.53 | 18.57 | 18.62 |
Peak power voltage (Vmp/V) | 37.8 | 38.0 | 38.2 |
Peak power current (Imp/A) | 17.47 |
17.51 |
17.55 |
FAQ:
What watts of this panel?
Mono 660w 670W solar panel
What dimension of this panel?
2384 ×1303× 35 mm

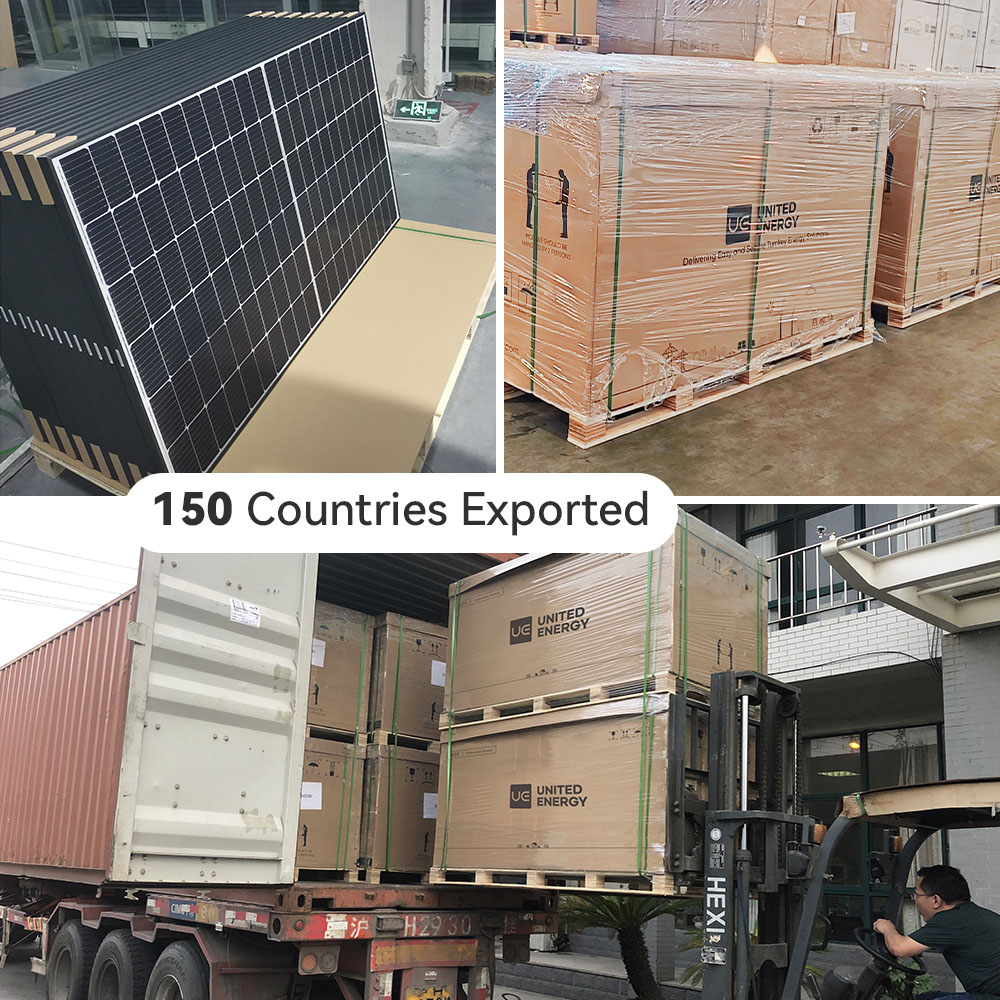

How Many pcs quantity of one container? How much is the loading quantity and shipping method?
31pcs/pallet. 558pcs/40HQ;Shipping normally by sea because of the heavy weight, but we can provide DDP(door-to-door) service if needed.
How long is the Delivery time?
Normally production will takes around 10 workings days, depends on the order quantity.
