1. Up to 435W, 21.8% module efficiency with high density interconnect technology
2. 2% first year degradation,0.55% Annual Power Attenuation
Brand :
TrinaMax. Efficiency :
21.8%Number of Cells :
144cellsDimension :
1762×1134×30mmWeight :
21.8kgJunction Box :
IP68 Rated, 3 DiodeCable :
4.0mm2, Portrait: 300mm / Landscape: 1300mmWind/Snow Load: :
2400Pa/5400PaConnector :
MC4 CompatiblePower Range :
420-435wWarranty :
25 YearsPayment :
T/T,Credit Card, Paypal, Western UnionCertification :

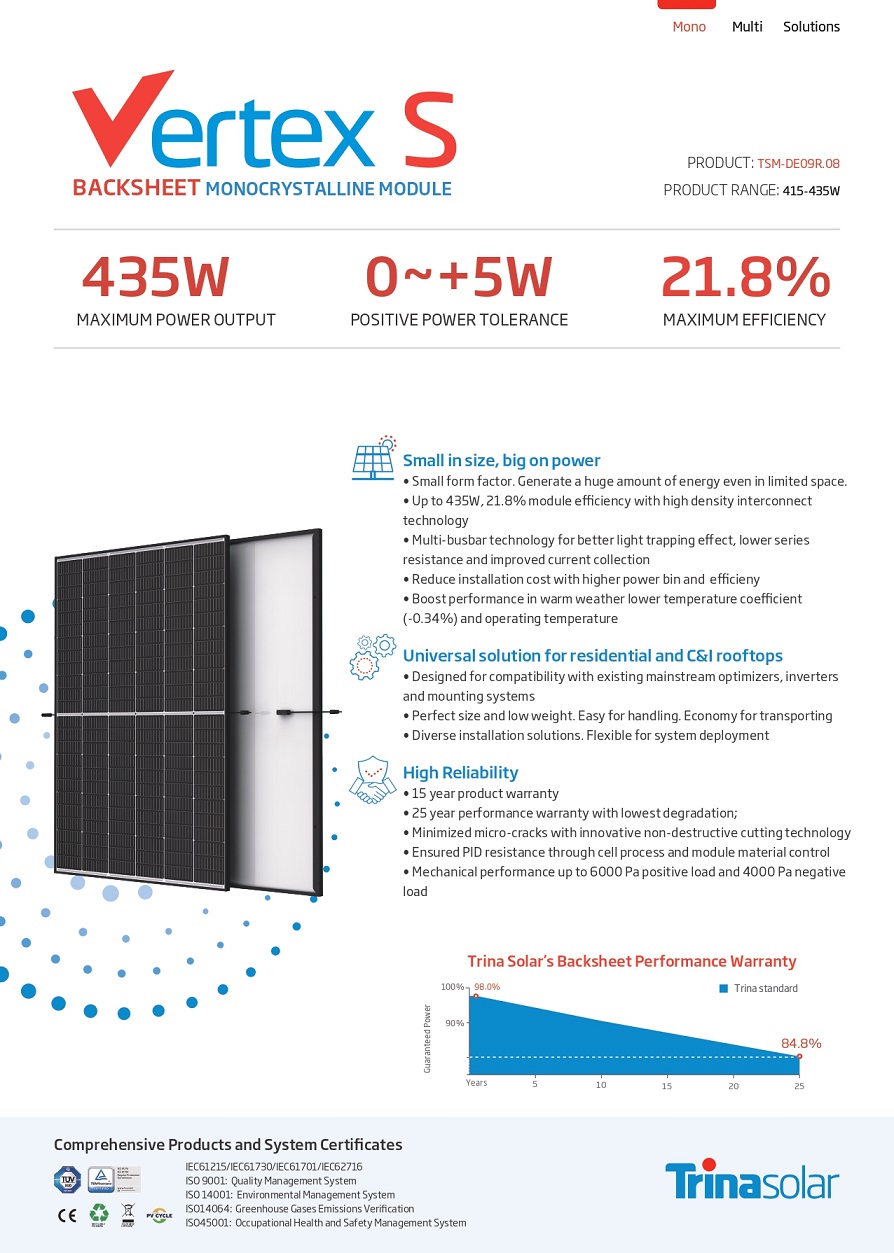

IEC/CE/TUV/CSA/CEC/ULSmall in size, big on power
• Small form factor. Generate a huge amount of energy even in limited space.
• Up to 435W, 21.8% module efficiency with high density interconnect
technology
• Multi-busbar technology for better light trapping effect, lower series
resistance and improved current collection
• Reduce installation cost with higher power bin and efficieny
• Boost performance in warm weather lower temperature coefficient
(-0.34%) and operating temperature
Universal solution for residential and C&I rooftops
• Designed for compatibility with existing mainstream optimizers, inverters
and mounting systems
• Perfect size and low weight. Easy for handling. Economy for transporting
• Diverse installation solutions. Flexible for system deployment
High Reliability
• 15 year product warranty
• 25 year performance warranty with lowest degradation;
• Minimized micro-cracks with innovative non-destructive cutting technology
• Ensured PID resistance through cell process and module material control
• Mechanical performance up to 6000 Pa positive load and 4000 Pa negative
load

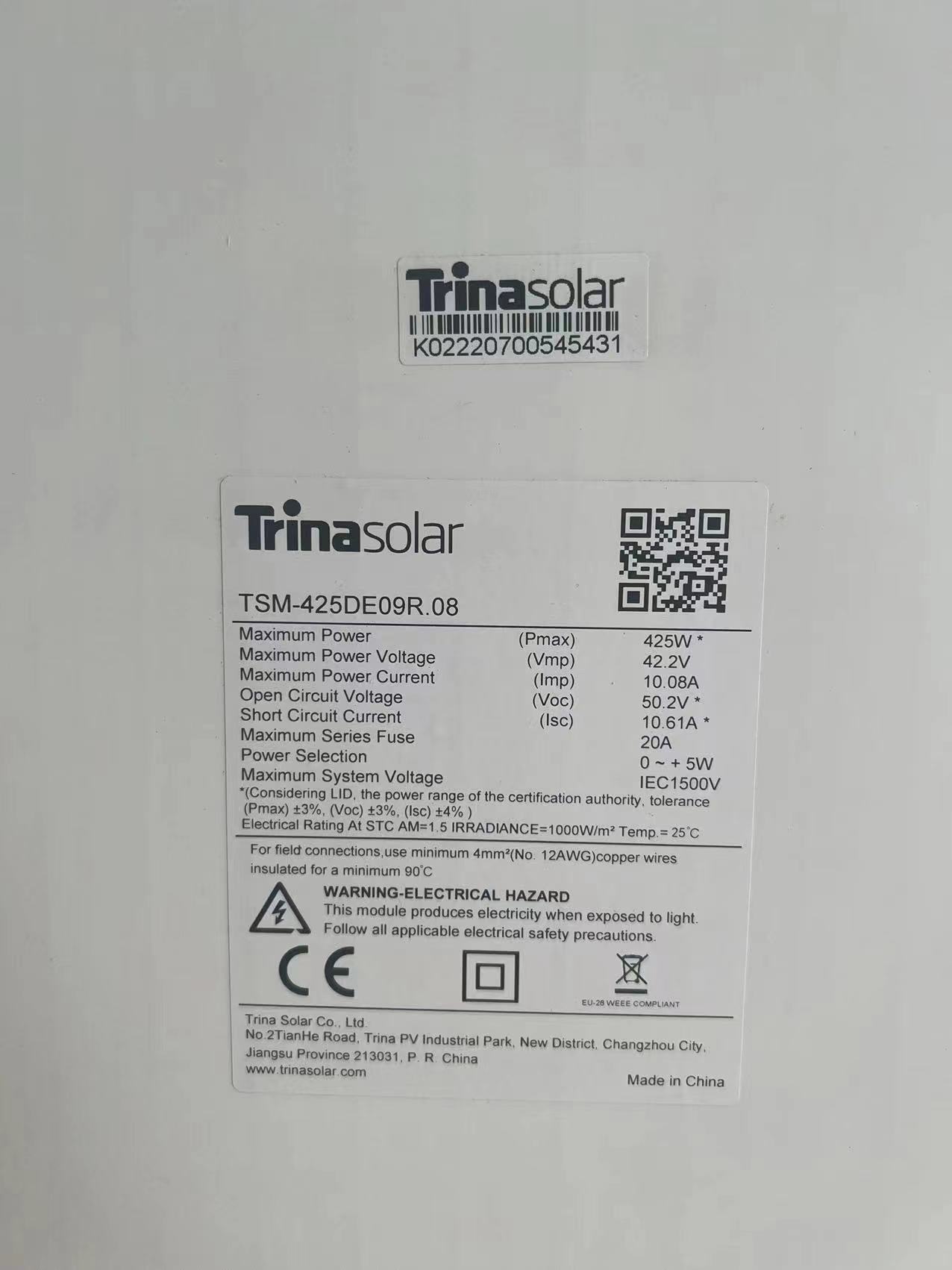

Electrical Specification
Module Type | Vertex 425w | Vertex 430w | Vertex 435w |
Maximum power (Pmax/W) | 425 | 430 | 435 |
Open-circuit voltage (Voc/V) | 50.2 | 50.3 | 50.4 |
Short circuit current (Isc/A) | 10.61 | 10.64 | 10.67 |
Peak power voltage (Vmp/V) | 42.2 | 42.3 | 42.5 |
Peak power current (Imp/A) | 10.08 |
10.17 |
10.24 |
FAQ:

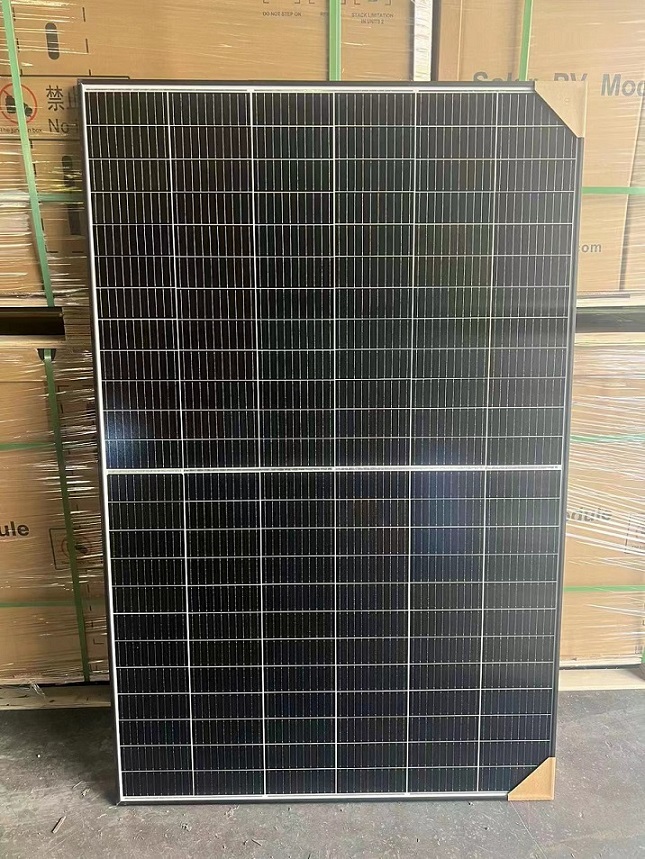

What watts of this panel?
Mono 420w 425w 430w solar panel
What dimension of this panel?
1762 ×1134× 30 mm

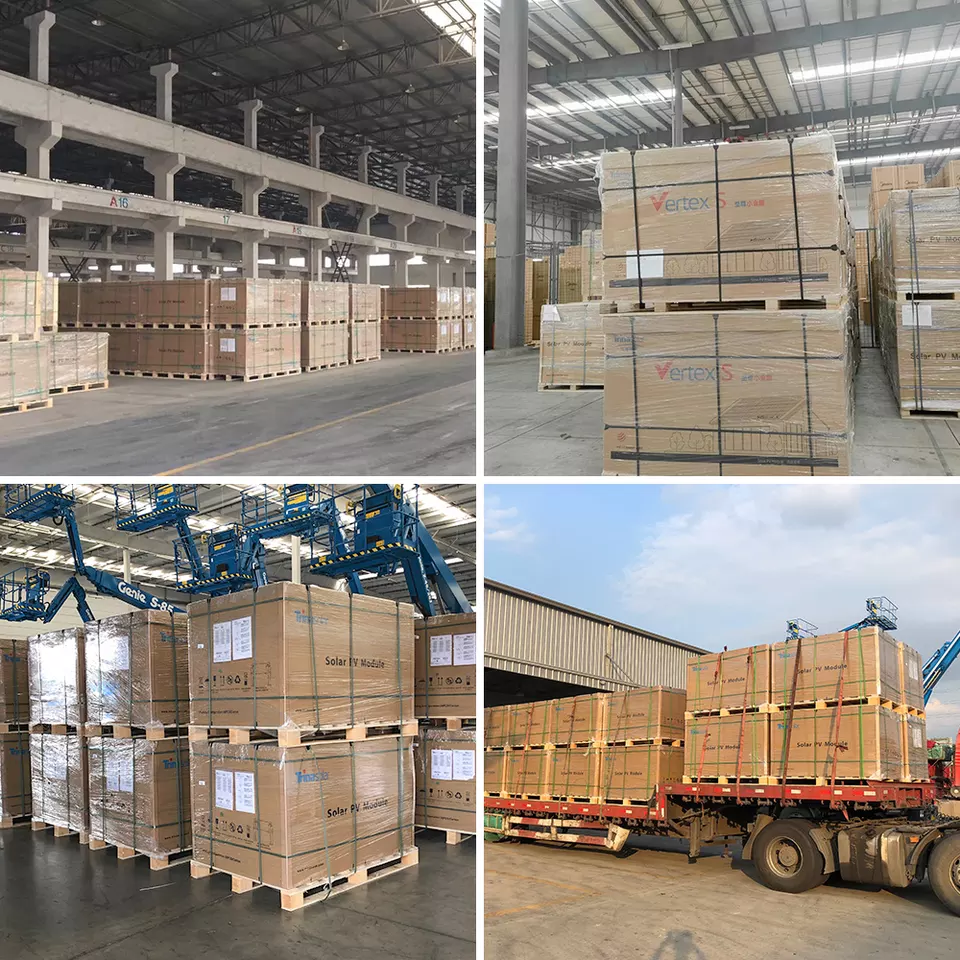

How Many pcs quantity of one container? How much is the loading quantity and shipping method?
36pcs/pallet. 936pcs/40HQ;Shipping normally by sea because of the heavy weight, but we can provide DDP(door-to-door) service if needed.
How long is the Delivery time?
Normally production will takes around 10 workings days, depends on the order quantity.
