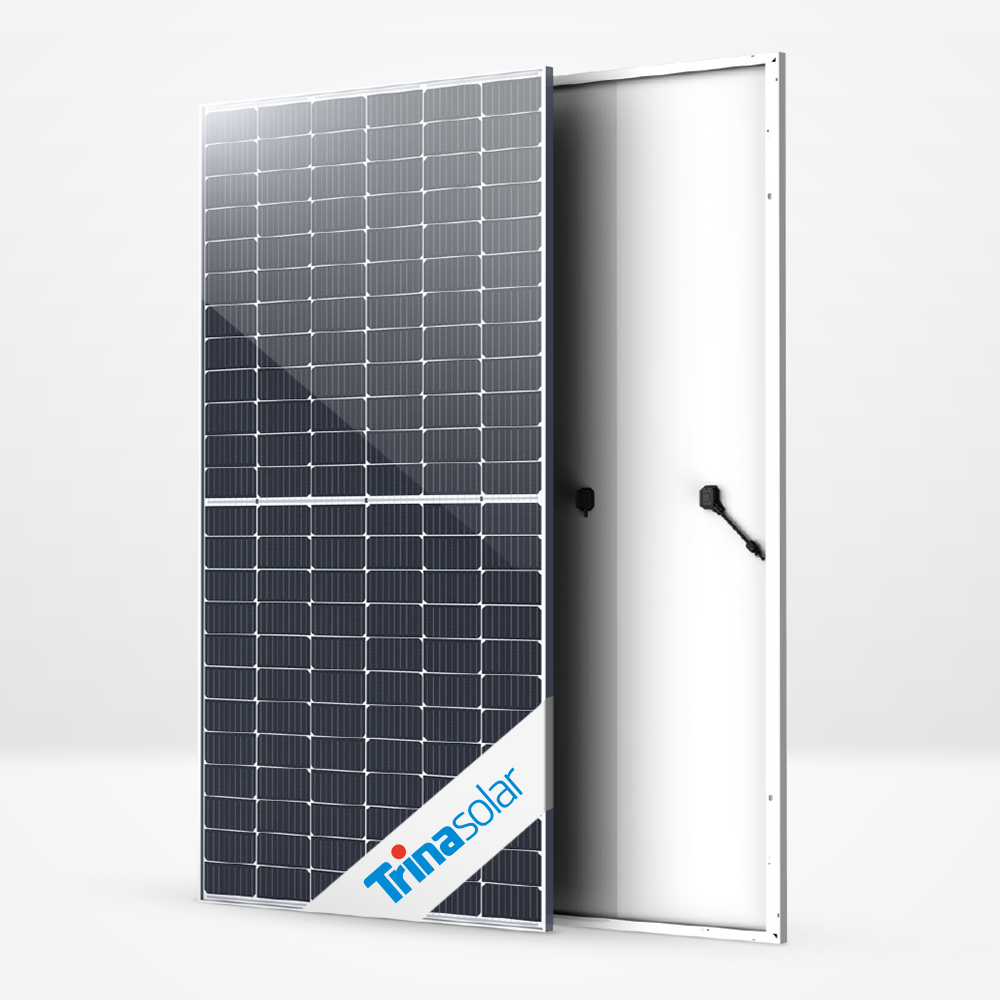

1. Up to 560W, Up to 21.4% module efficiency with high density interconnect technology
2. 2% first year degradation，0.55% Annual Power Attenuation
Brand :
TrinaMax. Efficiency :
21.4%Number of Cells :
110cellsDimension :
2384×1096×35mmWeight :
28.6kgJunction Box :
IP68 Rated, 3 DiodeCable :
4.0mm2, Portrait: 300mm / Landscape: 1300mmWind/Snow Load: :
2400Pa/5400PaConnector :
MC4 CompatiblePower Range :
550-560wWarranty :
25 YearsPayment :
T/T,Credit Card, Paypal, Western UnionCertification :
IEC/CE/TUV/CSA/CEC/UL

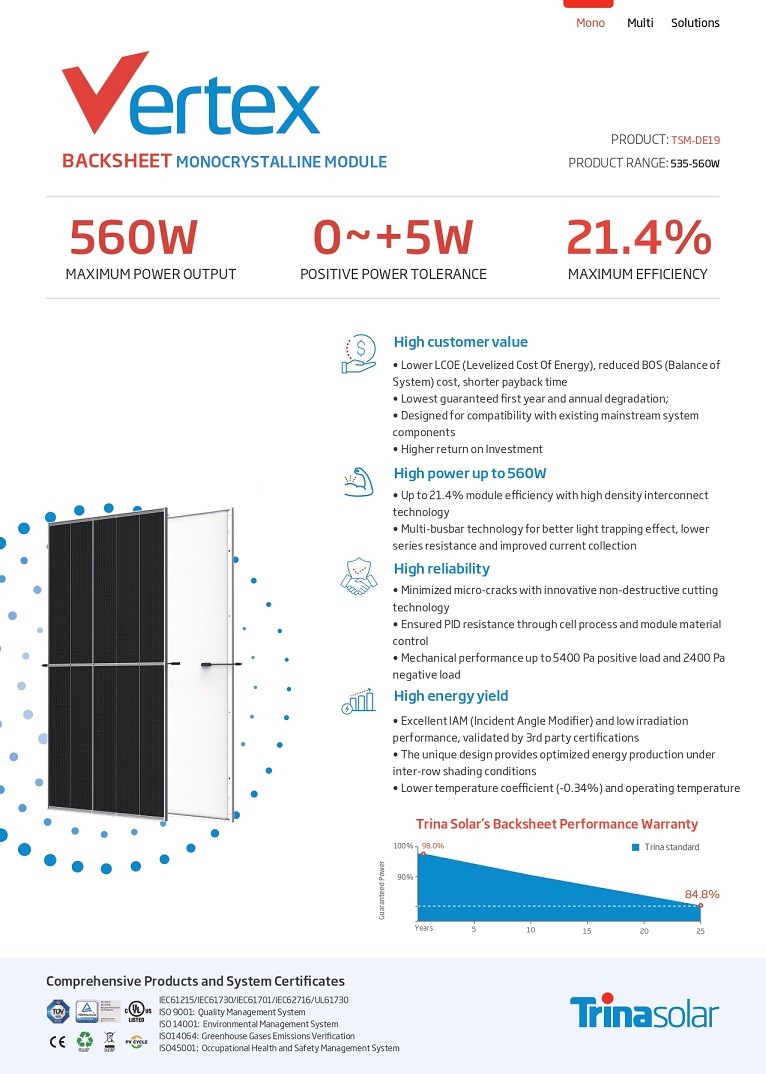

High customer value
• Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of
System) cost, shorter payback time
• Lowest guaranteed first year and annual degradation;
• Designed for compatibility with existing mainstream system
components
• Higher return on Investment
High power up to 560W
• Up to 21.4% module efficiency with high density interconnect
technology
• Multi-busbar technology for better light trapping effect, lower
series resistance and improved current collection
High reliability
• Minimized micro-cracks with innovative non-destructive cutting
technology
• Ensured PID resistance through cell process and module material
control
• Mechanical performance up to 5400 Pa positive load and 2400 Pa
negative load
High energy yield
• Excellent IAM (Incident Angle Modifier) and low irradiation
performance, validated by 3rd party certifications
• The unique design provides optimized energy production under
inter-row shading conditions
• Lower temperature coefficient (-0.34%) and operating temperature

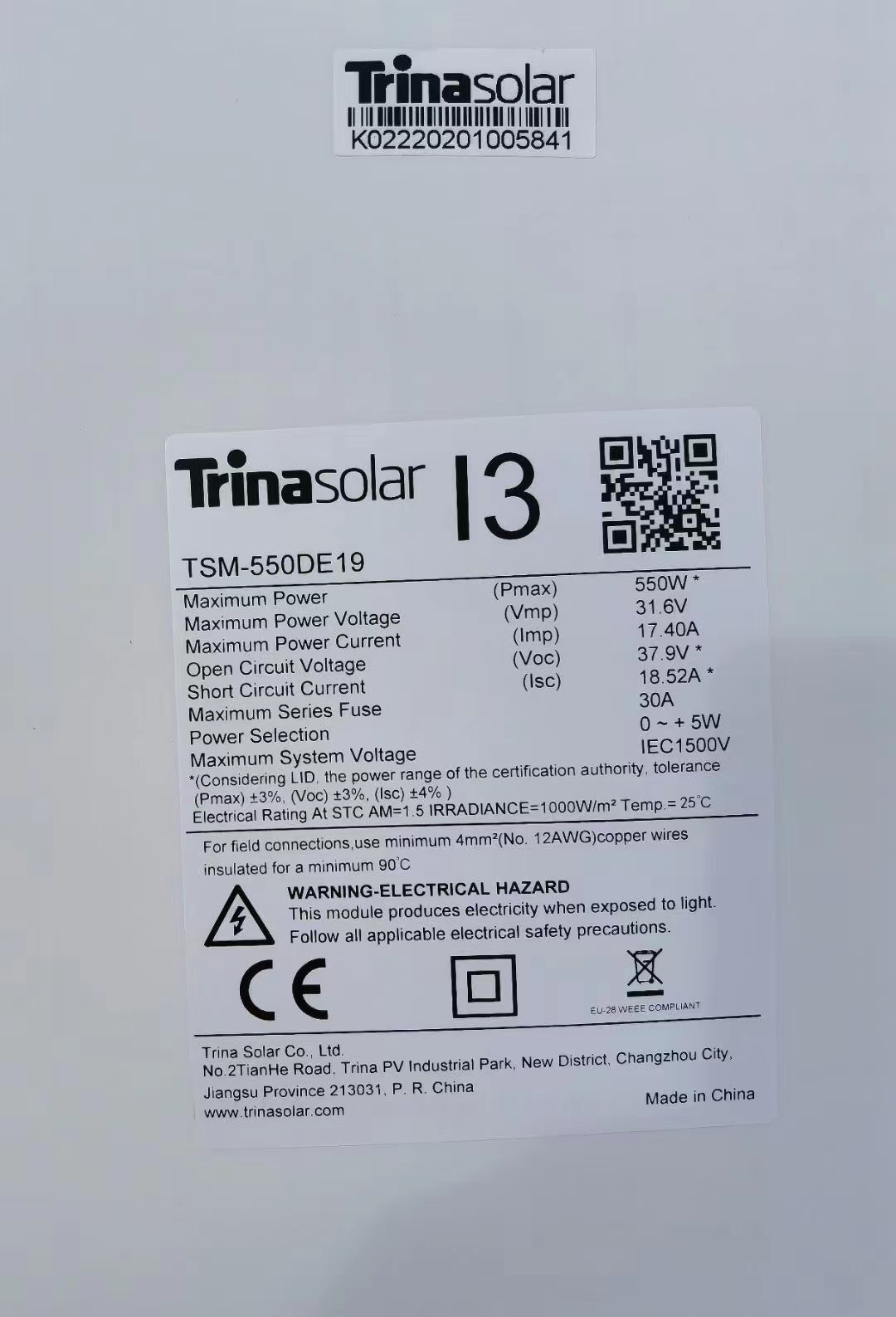

Electrical Specification
| Module Type | Vertex 550W | Vertex 555W | Vertex 560W |
| Maximum power (Pmax/W) | 550 | 555 | 560 |
| Open-circuit voltage (Voc/V) | 37.9 | 38.1 | 38.3 |
| Short circuit current (Isc/A) | 18.52 | 18.56 | 18.60 |
| Peak power voltage (Vmp/V) | 31.6 | 31.8 | 32.0 |
| Peak power current (Imp/A) | 17.4 |
17.45 |
17.49 |
FAQ：
What watts of this panel?
Mono 550w 560W solar panel
What dimension of this panel?
2384 ×1096× 35 mm
How Many pcs quantity of one container? How much is the loading quantity and shipping method?
31pcs/pallet. 682pcs/40HQ;Shipping normally by sea because of the heavy weight, but we can provide DDP(door-to-door) service if needed.
How long is the Delivery time?
Normally production will takes around 10 workings days, depends on the order quantity.
