Factory Audit;
Goods Inspection;
Third Party Test.

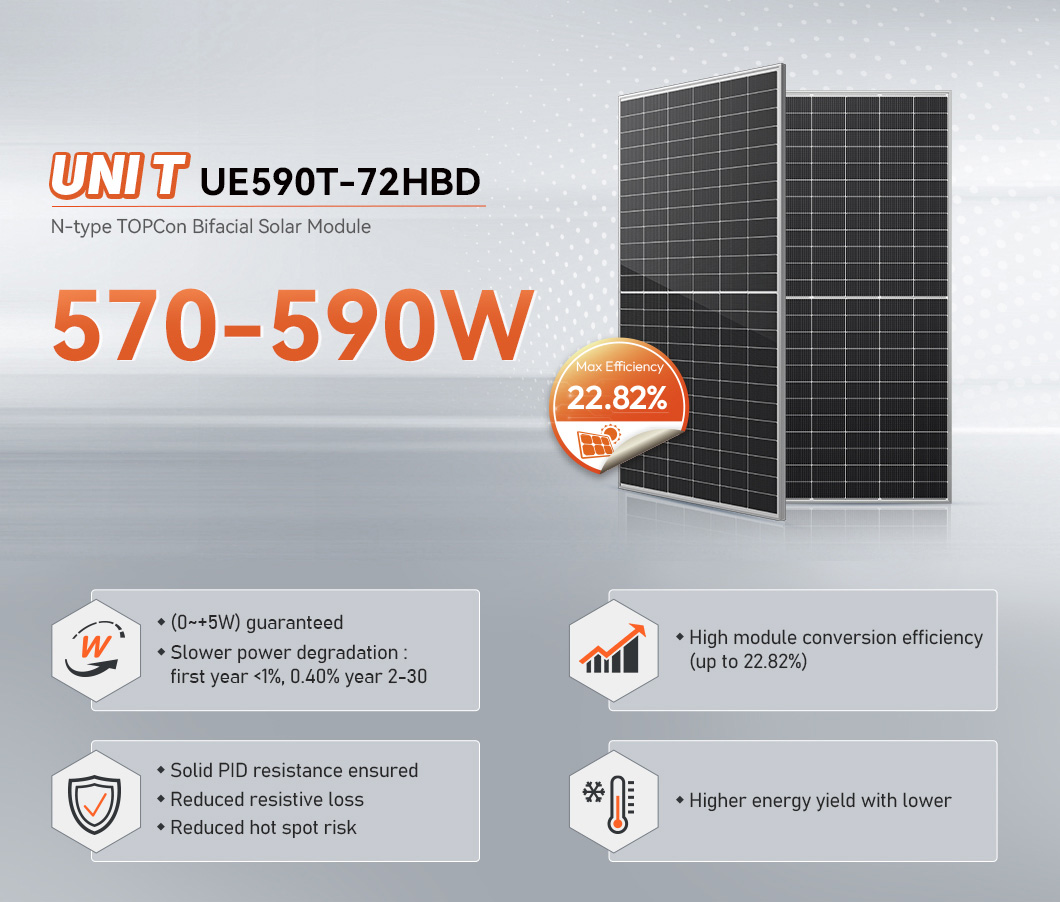

Positive power tolerance (0-+5W) guaranteed
High module conversion efficiency (up to 22.82%)
Slower power degradation enabled by Low LID technology: first year <1%,0.40% year 2-30
Solid PlD resistance by solar cell process optimization and careful module BOM selection
Reduced resistive loss with lower operating current
Higher energy yield with lower operating temperature
Reduced hot spot risk with optimized electrical design and lower operating current
Brand :
UEMax. Efficiency :
22.82%Number of Cells :
144(6*24)Dimension :
2279× 1134 × 30mmWeight :
31.5kgPower Range :
570w-590WWarranty :
25-30 YearsTOPCon is one of the technical pathways for N-type solar cells and is expected to replace P-type solar cells as a new generation solar cell technology, thanks to its apparent advantages. In comparison to traditional P-type solar cells, N-type solar cells have advantages such as high conversion efficiency, high bifaciality, low temperature coefficient, almost no light-induced degradation, and good performance in low-light conditions. It is widely regarded in the industry as the next generation solar module technology.
Electrical Parameters(STC*)
|
||||||||||
Model Number
|
570
|
575
|
580
|
585
|
590
|
|||||
Maximum Power (Pmax/W)
|
570
|
575 | 580 | 585 | 590 | |||||
Open Circuit Voltage (Voc/V)
|
51.41 | 51.55 | 51.79 | 52.03 | 52.17 | |||||
Short Circuit Current (Isc/A)
|
14.15 | 14.22 | 14.29 | 14.36 | 14.43 | |||||
Voltage at Maximum Power (Vmp/V)
|
42.41 | 42.56 | 42.71 | 42.86 | 43.01 | |||||
Current at Maximum Power (Imp/A)
|
13.44 | 13.51 | 13.58 | 13.65 | 13.72 | |||||
Module Efficiency(%) | 22.06 | 22.25 | 22.44 | 22.64 | 22.82 |
Bifacial Output Rear side Power Gain
|
||||||
5% | Maximum power(Pmax/W) | 599 | 604 | 609 | 614 | 619 |
Module Efficiency STC(%) | 23.17 | 23.37 | 23.56 | 23.77 | 23.97 | |
15% | Maximum power(Pmax/W) | 656 | 661 | 667 | 672 | 678 |
Module Efficiency STC(%) | 25.38 | 25.57 | 25.80 | 26.04 | 26.25 | |
25% | Maximum power(Pmax/W) | 713 | 719 | 725 | 731 | 737 |
Module Efficiency STC(%) | 27.58 | 27.82 | 28.05 | 28.29 | 28.54 |
