Brand :
UEMax. Efficiency :
21.48%Number of Cells :
144（6*24)Dimension :
2279*1134*35mmWeight :
27.5kgPower Range :
530-555 WWarranty :
15-30 Years

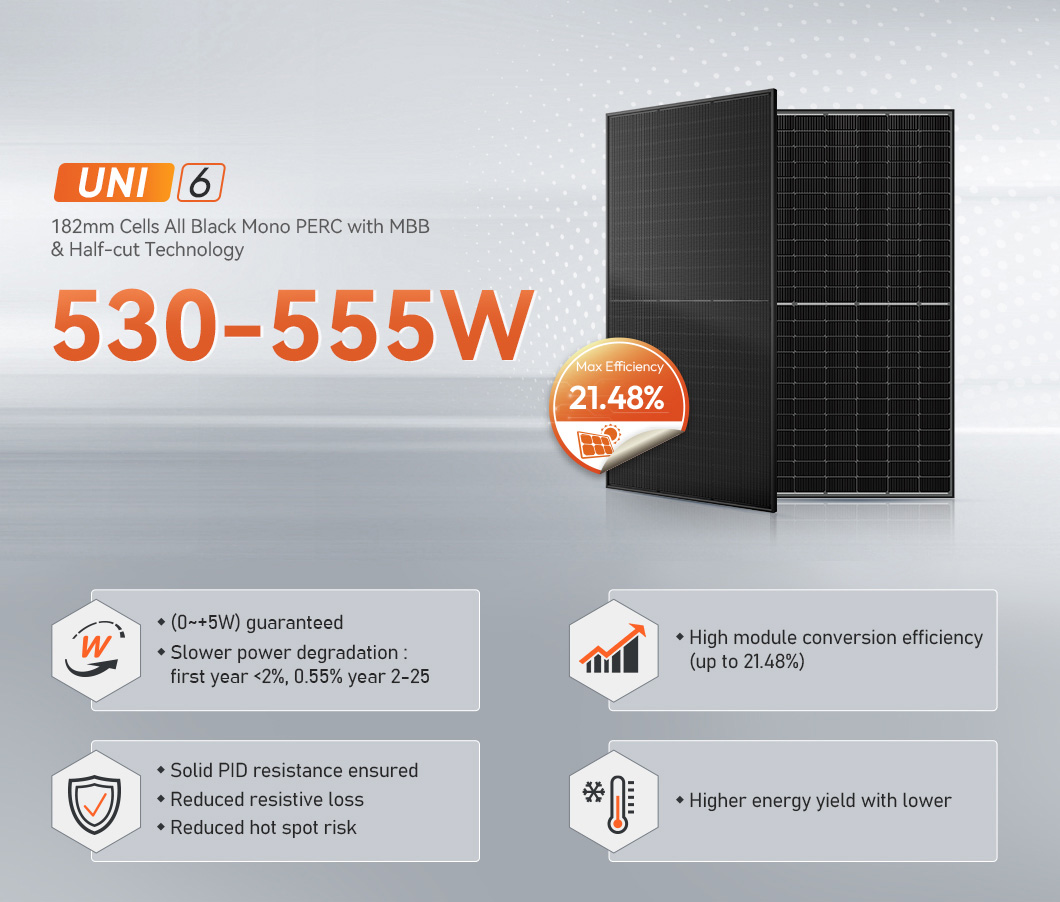

PERC stands for "Passivated Emitter and Rear Contact" or "Rear Cell". Solar panels made with PERC cells have an extra layer on the back of traditional solar cells. This extra layer captures more sunlight and converts it into electricity, making PERC cells more efficient than traditional cells. PERC solar modules also mitigate backside recombination and prevent longer wavelength heat from becoming heat that can harm cell performance. PERC is a mature solar cell technology currently on the market and has the most abundant types of solar panel products.
| Electrical Parameters(STC*) | ||||||||||
| Model Number | UE530M-72HB | UE535M-72HB | UE540M-72HB |
UE545M-72HB |
UE550M-72HB | UE555M-72HB | ||||
| Testing Condition | STC NOCT | STC NOCT |
STC NOCT |
STC NOCT |
STC NOCT |
STC NOCT |
||||
| Maximum Power (Pmax/W) | 530 394 | 535 398 | 540 402 | 545 406 | 550 410 | 555 414 | ||||
| Open Circuit Voltage (Voc/V) | 49.24 46.47 | 49.34 46.57 | 49.44 46.67 | 49.54 46.77 | 49.64 46.87 | 49.74 46.97 | ||||
| Short Circuit Current (Isc/A) | 13.72 11.08 | 13.79 11.14 | 13.86 11.2 | 13.93 11.26 | 14 11.32 | 14.07 11.38 | ||||
| Voltage at Maximum Power (Vmp/V) | 40.54 37.74 | 40.63 37.91 | 40.72 38.08 | 40.81 38.25 | 40.9 38.42 | 40.99 38.59 | ||||
| Current at Maximum Power (Imp/A) | 13.08 10.44 | 13.17 10.5 | 13.27 10.56 |
13.36 10.62 | 13.45 10.68 | 13.54 10.73 | ||||
| Module Efficiency(%) | 20.51 | 20.71 | 20.9 | 21.09 | 21.29 | 21.48 | ||||
| Temperature Coefficient of lsc |
+0.045%/°C | |||||||||
| Temperature Coefficient of Voc |
-0.275%/°C | |||||||||
| Temperature Coefficient of Pmax |
-0.350%/°C | |||||||||
