1\Can a 300 watt solar panel run a refrigerator?
Generally it is not sufficient to power a typical home refrigerator continuously. Because it depends on the power consumption of the refrigerator and the power generation efficiency of the solar panel (affected by sunlight intensity, sunlight angle, shadow, etc.). A properly configured home solar system with batteries and inverters is also key to achieving this.
2\How big is a 300 watt solar panel?
The size of this solar panel is 1755 ×1038 × 35mm.
3\How many 300 watt solar panels to run a house?
Assuming an average household energy consumption of around 800 kWh per month and considering typical solar insolation values, you might need approximately 15 to 25 300 watt solar panels to cover your energy needs. However, this is a rough estimate.
4\How many amps does 300 watt solar panel produce?
The amps of this solar panel is 10.6-10.91 amps.
5\How many batteries can a 300 watt solar panel charge?
A 100ah battery is enough. In fact, if you only have a 300W solar panel, the power will be used by your appliances immediately!

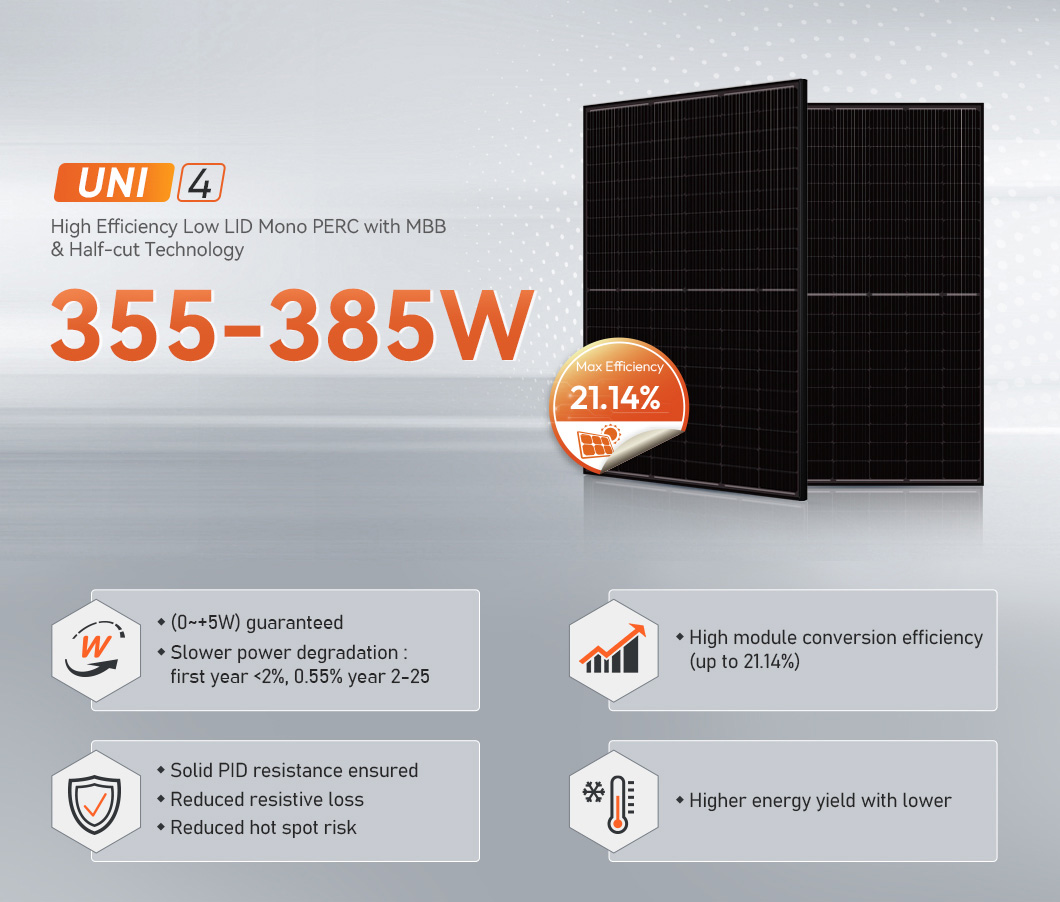

Brand :
UEMax. Efficiency :
21.14%Number of Cells :
120(6*20)Dimension :
1755*1038*35mmWeight :
20kgPower Range :
355-385WWarranty :
15-30 YearsPERC stands for "Passivated Emitter and Rear Contact" or "Rear Cell". Solar panels made with PERC cells have an extra layer on the back of traditional solar cells. This extra layer captures more sunlight and converts it into electricity, making PERC cells more efficient than traditional cells. PERC solar modules also mitigate backside recombination and prevent longer wavelength heat from becoming heat that can harm cell performance. PERC is a mature solar cell technology currently on the market and has the most abundant types of solar panel products.
Electrical Parameters(STC*) | ||||||||
Model Number | UE355M-60HB | UE365M-60HB | UE375M-60HB | UE385M-60HB | ||||
Testing Condition | STC NOCT | STC NOCT |
STC NOCT |
STC NOCT |
||||
Maximum Power (Pmax/W) | 355 267 | 365 275 | 375 283 | 385 291 | ||||
Open Circuit Voltage (Voc/V) | 40.4 38 | 41 38.6 | 41.6 39.2 | 42.2 39.8 | ||||
Short Circuit Current (Isc/A) | 11.16 8.99 | 11.3 9.11 | 11.44 9.23 | 11.58 9.35 | ||||
Voltage at Maximum Power (Vmp/V) | 33.5 31.4 | 34.1 32 | 34.7 32.6 | 35.3 33.2 | ||||
Current at Maximum Power (Imp/A) | 10.6 8.15 | 10.71 8.6 | 10.81 8.69 | 10.91 8.77 | ||||
Module Efficiency(%) | 19.49 | 20.04 | 20.59 | 21.14 | ||||
Temperature Coefficient of lsc |
+0.048%/°C | |||||||
Temperature Coefficient of Voc |
-0.270%/°C | |||||||
Temperature Coefficient of Pmax |
-0.350%/°C |
