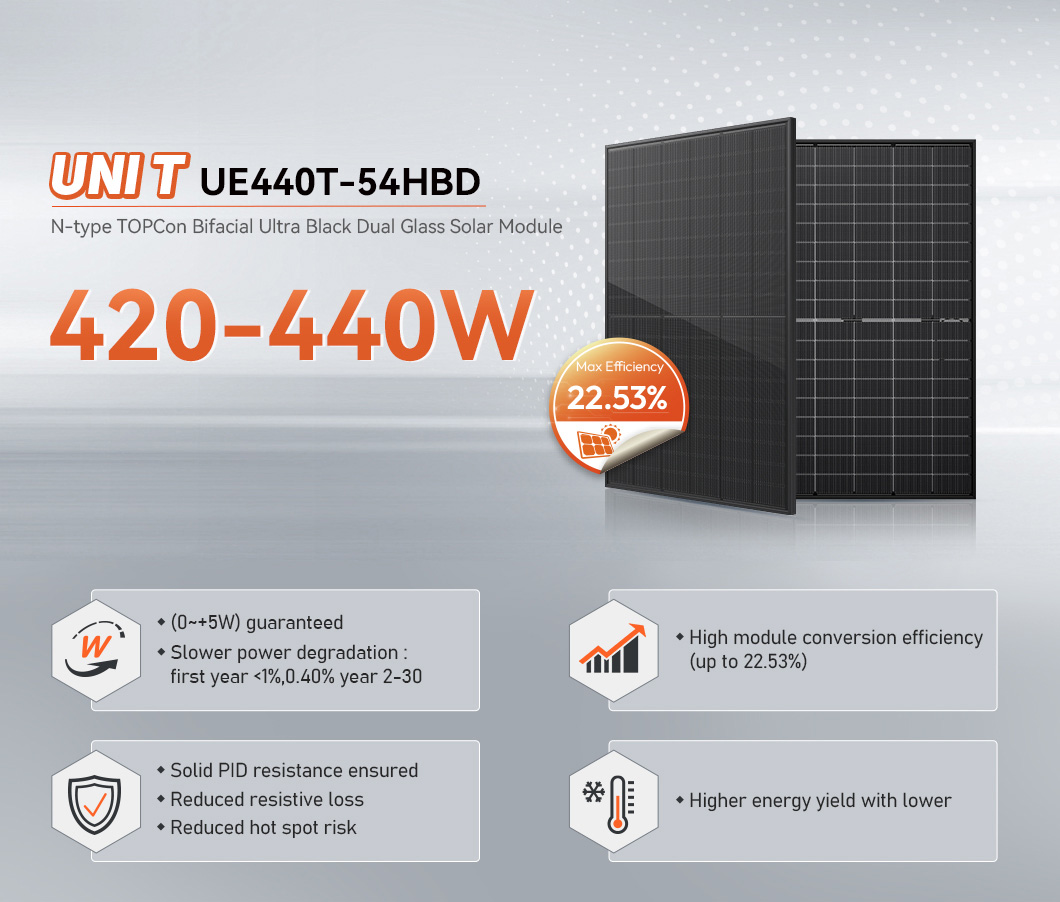

420-440Watt All Black Bifacial Mono Solar PV Panels TOPCon

420-440Watt All Black Bifacial Mono Solar PV Panels TOPCon

Positive power tolerance (0-+5W) guaranteed

High module conversion efficiency (up to22.53%)

Slower power degradation enabled by Low LID technology: first year <1%,0.40% year 2-30

Solid PlD resistance by solar cell process optimization and careful module BOM selection

Reduced resistive loss with lower operating current

Higher energy yield with lower operating temperature

Reduced hot spot risk with optimized electrical design and lower operating current

Brand :
UE
Max. Efficiency :
22.53%
Number of Cells :
108 (6×18)
Dimension :
1722× 1134 × 30mm
Weight :
23.5kg
Power Range :
420-440W
Warranty :
25-30 Years

Inquiry now

product introduction

TOPCon is one of the technical pathways for N-type solar cells and is expected to replace P-type solar cells as a new generation solar cell technology, thanks to its apparent advantages. In comparison to traditional P-type solar cells, N-type solar cells have advantages such as high conversion efficiency, high bifaciality, low temperature coefficient, almost no light-induced degradation, and good performance in low-light conditions. It is widely regarded in the industry as the next generation solar module technology.

Electrical Parameters(STC*)
Model Number	420	425	430	435	440
Maximum Power (Pmax/W)	420	425	430	435	40
Open Circuit Voltage (Voc/V)	38.49	38.73	38.96	39.20	39.44
Short Circuit Current (Isc/A)	13.99	14.06	14.13	14.20	14.27
Voltage at Maximum Power (Vmp/V)	31.63	31.84	32.04	32.25	32.45
Current at Maximum Power (Imp/A)	13.28	13.35	13.42	13.49	13.56
Module Efficiency(%)	21.51	21.76	22.02	22.28	22.53

Bifacial Output Rear side Power Gain
5%	Maximum power(Pmax/W)	441	446	452	457	462
5%	Module Efficiency STC(%)	22.58	22.85	23.12	23.36	23.63
15%	Maximum power(Pmax/W)	483	489	495	500	506
15%	Module Efficiency STC(%)	24.73	25.03	25.32	25.59	25.88
25%	Maximum power(Pmax/W)	525	531	538	544	550
25%	Module Efficiency STC(%)	26.89	27.21	27.53	27.82	28.14

1. Standard Test Conditions [STC]: irradiance 1000W/m2 ; AM 1.5; ambient temperature 25°C according to EN 60904-3;

2. Tolerance of Pm: 0~+5W, Measuring uncertainty of power: ±3%. Performance deviation of Voc [V], Isc [A], Vm [V] and Im [A]: ±3%.

Why Choose Us

United Energy focusing on R&D and manufacture of solar energy systems, meet EU and U.S. regulations, dedicated to making safer and more efficient Solar Energy Solutions.

50%+ of the sales engineers are having 10+ years experience you can always trust UE team since they have developed 5,000+ overseas distributors and Installers from ground up.

FAQ

1, Where is your factory located

United Energy's China manufacturing center in Hefei Anhui, and Wuxi Jiangsu. Vietnam factory in HCM city to convenient US customers without anti-dumping tax

2, Are you a factory or a trading company?

UE is solar panel factory with over 14 years experience, factory inspection is welcome anytime.

3,What solar panel technology are you currently adopting? Available power range?

We currently have PERC, HJT, TOPCON, and shingle technology, power range between 5W-800W.

4,Do you have MOQ?

We do not have MOQ, small order is welcome to test our quality. Fully confident that you will love our quality and service.

5,What's the strength of your company?

1) We are the Top 10 manufacturers in the PV industry, guarantee that each solar panel receives 100% quality inspection, and corresponding test reports can be provided (EL, IV, Flash Test Report) .

2)Owns a team of 30+ engineers who can help you design a complete system solution to help you maximize system efficiency.
