1.Optimized Module Size
M10 wafer and 54 cell design, fully considering the size and weight of modules in distributed applications
2.Optimized Electrical Parameters
The working current is about 13A, which is perfectly adapted to mainstream string inverters.
Brand :
LONGIMax. Efficiency :
21.5%Number of Cells :
108cellsDimension :
1722×1134×30mmWeight :
20.8kgJunction Box :
IP68 Rated, 3 DiodeCable :
4.0mm2, Portrait: 300mm / Landscape: 1300mmWind/Snow Load: :
2400Pa/5400PaConnector :
MC4 CompatiblePower Range :
410-420wWarranty :
25 YearsPayment :
T/T,Credit Card, Paypal, Western UnionCertification :
IEC/CE/TUV/CSA/CEC/UL1.Smart Soldering
Uniform smart soldering increases the power and efficiency of the module, and improves the power load capacity.
2.Smart Module Packaging and Logistics
Smart module packaging solutions are used to achieve high reliability, low-cost transportation and logistics.
3.Gallium-doped Technology
Gallium-doped technology overcomes LID degradation and guarantees the long-term power generation of the module.
4.Power Warranty
1st year degradation ≤2%, linear degradation ≤0.55%/year
Electrical Specification
Module Type | LR5-54HPH-410M | LR5-54HPH-415M | LR5-54HPH-420M |
Maximum power (Pmax/W) | 410 | 415 | 420 |
Open-circuit voltage (Voc/V) | 37.25 | 37.5 | 37.75 |
Short circuit current (Isc/A) | 13.88 | 13.94 | 14.01 |
Peak power voltage (Vmp/V) | 31.25 | 31.49 | 31.73 |
Peak power current (Imp/A) | 13.12 |
13.18 |
13.24 |
FAQ:
What watts of this panel?
Mono 410w 415W 420W
What dimension of this panel?
1722×1134×30mm
How Many pcs quantity of one container? How much is the loading quantity and shipping method?

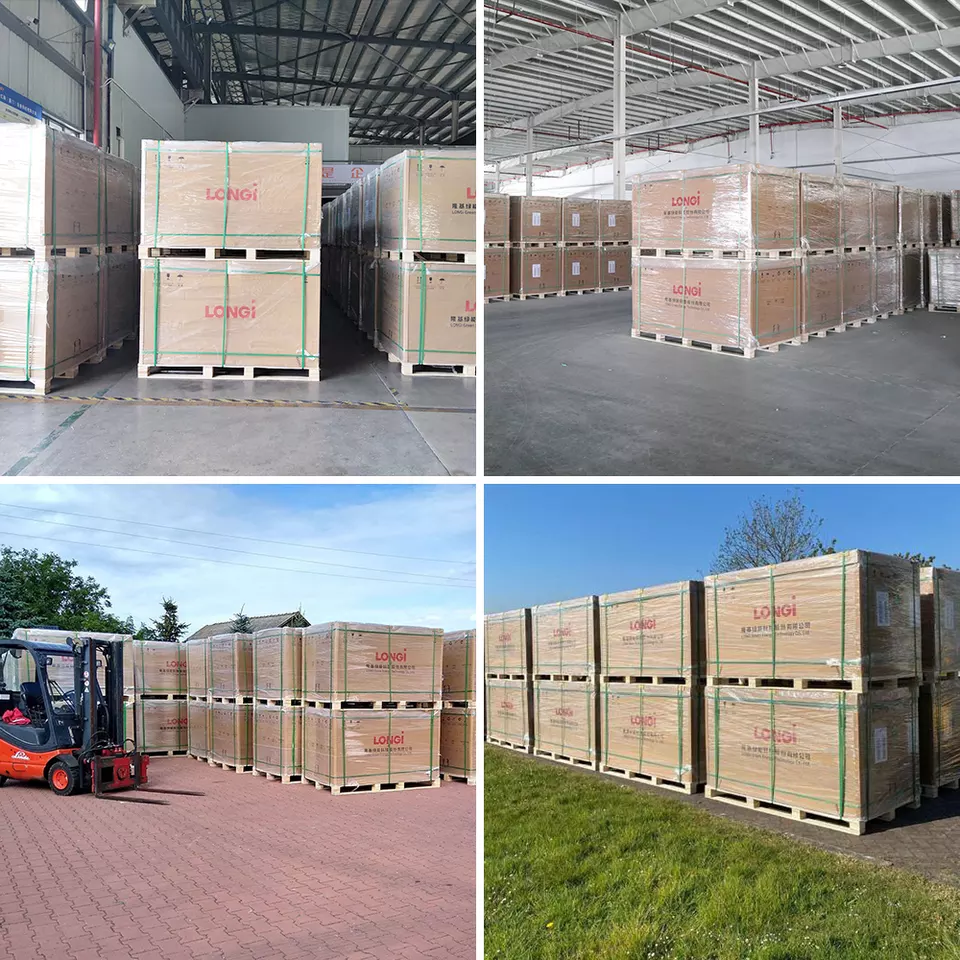

36pcs/pallet. 216pcs/20ft.936pcs/40HQ; Shipping normally by sea because of the heavy weight, but we can provide DDP(door-to-door) service if needed.
How long is the Delivery time?
Normally production will takes around 10 workings days, depends on the order quantity.
