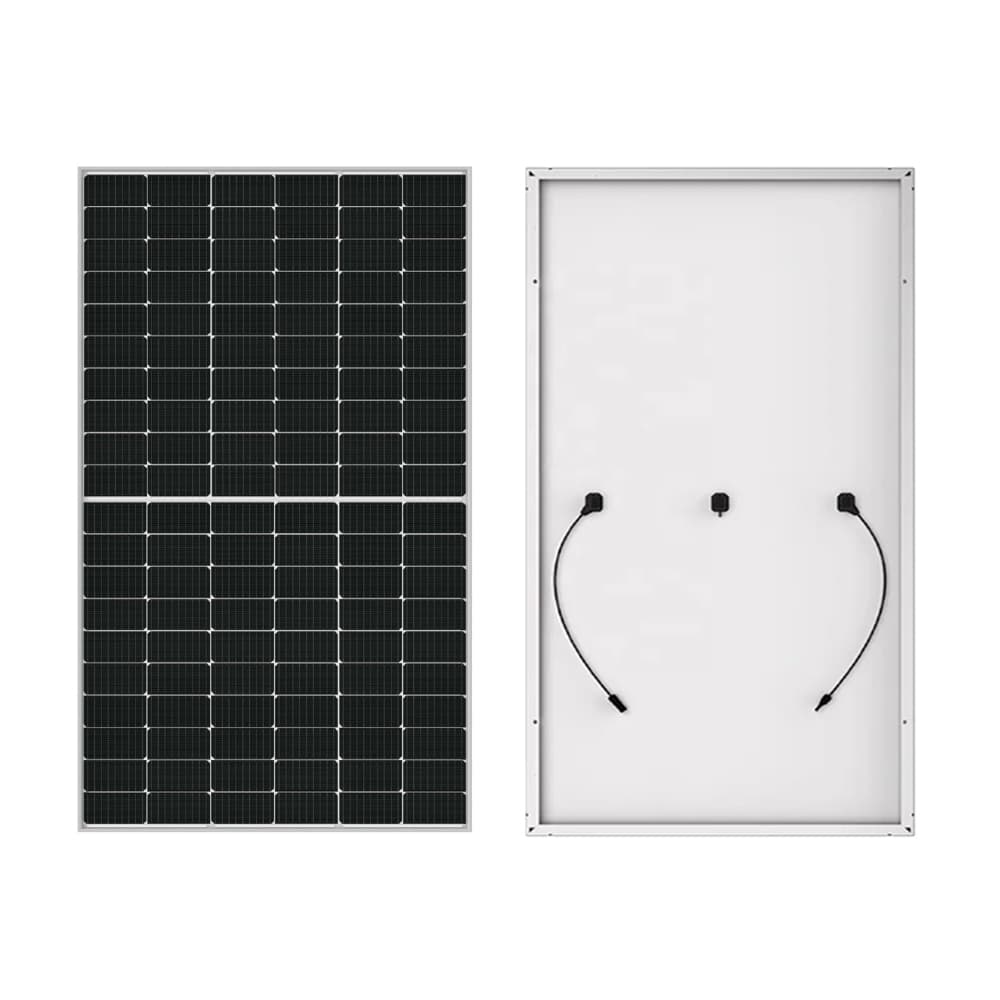

UNI 4 Series 120 Half-Cells Mono solar panel 380W solar pv module manufacturer
Wholesaler for photovoltaic solar panels 370W 380W 390W PERC technology
1、PERC technology, higher Effi. up to 21.4%
2、Max. power up to 390W, high power, less cost
3、12 years warranty for materials and processing, 25 years warranty for liner output power
Brand :
United Energy Or OEM ServiceMax. Efficiency :
21.4%Number of Cells :
120CellsDimension :
1755*1038*30mmWeight :
19kgJunction Box :
IP68 Rated, 3 DiodeCable :
4.0mm2, Portrait: 300mm / Landscape: 1300mmWind/Snow Load: :
2400Pa/5400PaConnector :
MC4 CompatiblePower Range :
370-390wWarranty :
25 YearsPayment :
T/T,Credit Card, Paypal, Western UnionCertification :
IEC/CE/TUV/CSA/CEC/ULUnited Energy founded in 2009, National high-tech enterprise,focus on solar panel R&D obtained more than 100 patents.
Quality is the Company Culture of UNITED ENERGY!

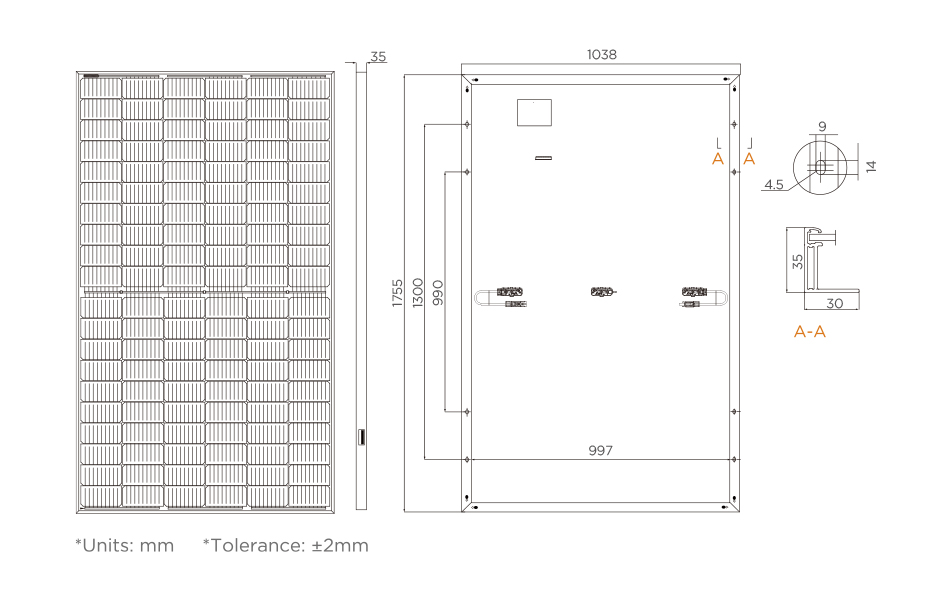

Dimension Details:
1. The hot spot temperature of the half-chip module assembly is lower than the temperature of the same-type full-piece module assembly by about 25 ° C, which can effectively reduce the hot spot effect of the solar panel.
2. Half-cut module components meet the 1500V system voltage design requirements, which can reduce the system-side cost by about 10%
3. Effectively reduce the loss of power generation caused by occlusion when there is shadow occlusion and ash accumulation or snow accumulation.
4. Reduce the first year and the average photoinduced attenuation
5. 100% PID Free.
Electrical Specification
Model Number | UE365M-60HB | UE370M-60HB | UE375M-60HB | UE380M-60HB | ||||
Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT |
Maximum Power (Pmax/W) | 365 | 277 | 370 | 281 | 375 | 285 | 380 | 289 |
Open Circuit Voltage (Voc/V) | 41 | 38.8 | 41.3 | 39.1 | 41.6 | 39.4 | 41.9 | 39.7 |
Short Circuit Current (Isc/A) | 11.3 | 9.11 | 11.37 | 9.17 | 11.44 | 9.23 | 11.51 | 9.29 |
Voltage at Max Power (Vmp/V) | 34 | 32.2 | 34.3 | 32.5 | 34.6 | 32.8 | 34.9 | 33.1 |
Current at Max Power (Imp/A) | 10.74 | 8.61 | 10.79 | 8.65 | 10.84 | 8.69 | 10.89 | 8.74 |
Module Efficiency(%) | 20.04 | 20.32 | 20.59 | 20.86 | ||||
Temp Coefficient of Isc | +0.048%/°C | |||||||
Temp Coefficient of Voc | -0.270%/°C | |||||||
Temp Coefficient of Pmax | -0.350%/°C |
1.50W increase compared with PERC of the same version
2.Passed the standard test of 3 times IEC for greater reliability
3.HJT new production technology
4. Superior Warranty-12 years products warranty 25 years linear power output warranty
5. Full set of safety certification and regulation, meet certificate requirements in most of the countries.
50%+ of the sales engineers are having 10+ years experience you can always trust UE team since they have developed 5,000+ overseas distributors and Installers from ground up.
FAQ:
What watts of this panel?
Mono 370w 375w 380w 385w 390w solar panel.
What dimension of this panel?
1755 x 1038 x 30mm
How much is the loading quantity and shipping method?

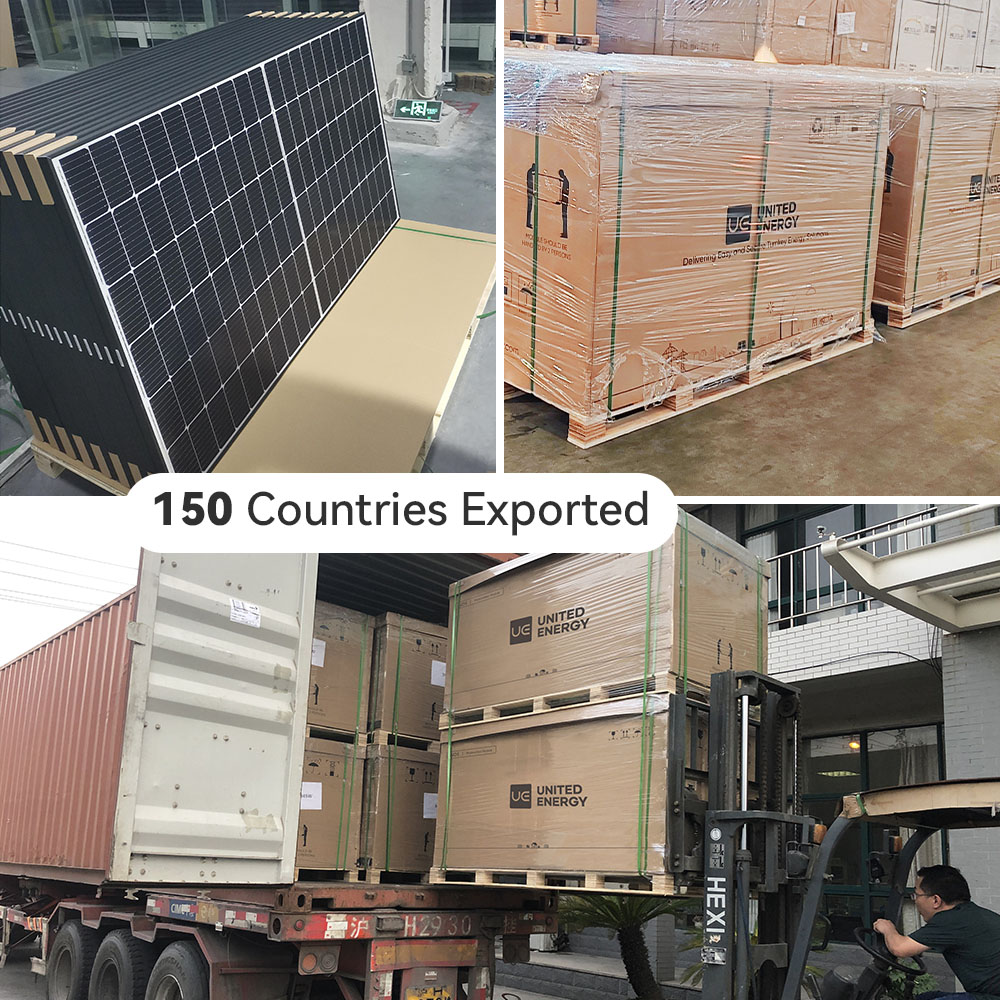

36pcs/pallet 936pcs/40HQ; Shipping normally by sea because of the heavy weight, but we can provide DDP(door-to-door) service if needed.
How long is the Delivery time?
Normally production will takes around 10 workings days, depends on the order quantity.
