Gallium-doped technology 550w 560w Multi Busbar Solar Panel Manufacturer

Gallium-doped technology 550w 560w Multi Busbar Solar Panel Manufacturer

UNI 5 Pro Series 144 Cells 10BB Solar PV Panel 540w 545w 550watt 560wp

Solar panels manufactured with PERC cells have an additional layer on the back compared to traditional solar panels. This additional layer enhances the capture of sunlight, converting it into electrical energy more efficiently, making PERC cells more effective than traditional cells.

Photovoltaic Module Monocrystalline PERC Solar Panel Module Based on 182mm Solar Cell Panel Factory Direct

Brand :
United Energy Or OEM Service
Max. Efficiency :
21.9%
Number of Cells :
144Cells (6x24)
Dimension :
2279*1134*35mm
Weight :
27kg
Junction Box :
IP68 Rated, 3 Diode
Cable :
4.0mm2, Portrait: 300mm / Landscape: 1300mm
Wind/Snow Load: :
2400Pa/5400Pa
Connector :
MC4 Compatible
Power Range :
540w-560w
Warranty :
25 Years
Payment :
T/T,Credit Card, Paypal, Western Union
Certification :
IEC/CE/TUV/CSA/CEC/UL

Inquiry now

product introduction

United Energy founded in 2009, National high-tech enterprise,focus on solar panel R&D obtained more than 100 patents.

Quality is the Company Culture of UNITED ENERGY!

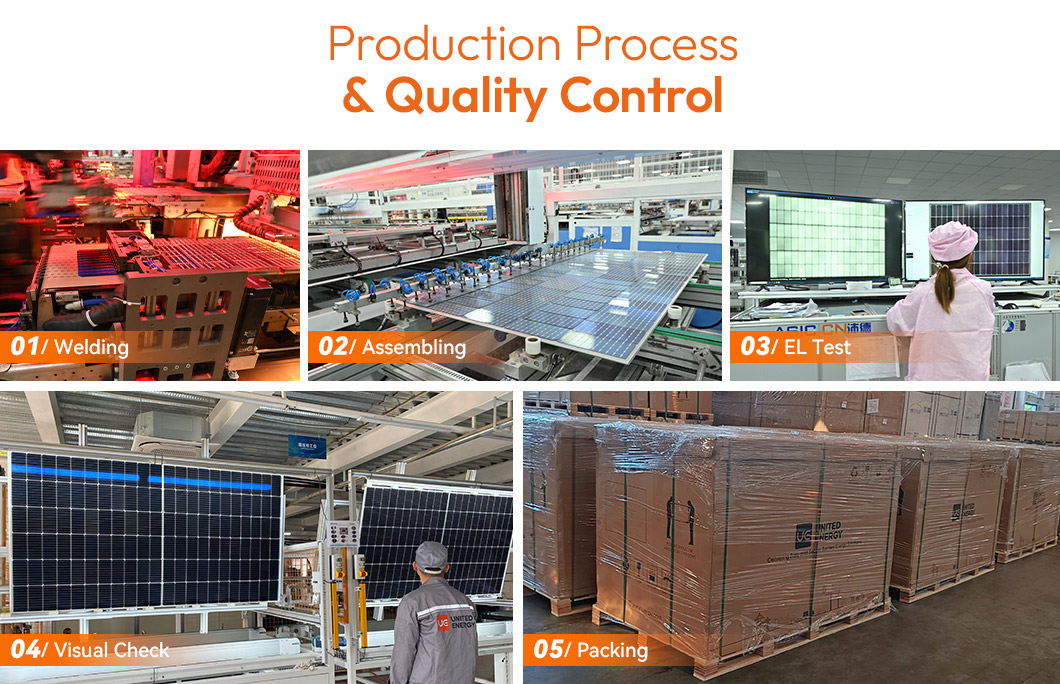

1. Smart Soldering-Uniform smart soldering increases the power and efficiency of the module,and improves the power load capacity

2.Gallium-doped technology overcomes LID degradation and guarantees the long-term power generation of the module.

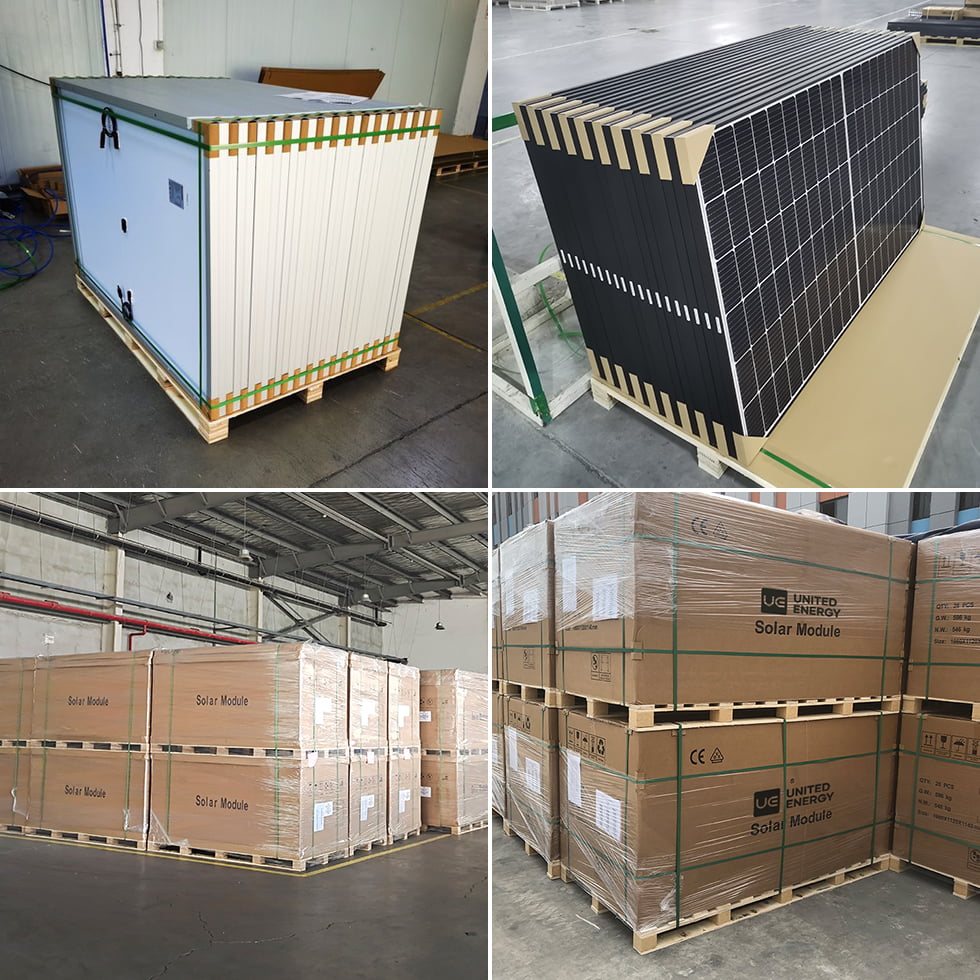

3. Smart Module Packaging and Logistics-Smart module packaging solutions are used to achieve high reliability,low-cost transportation and logistics.

4. Superior Warranty-12 years products warranty 25 years linear power output warranty

Electrical Specification

Model Number	UE540M-72H	UE545M-72H	UE550M-72H	UE555M-72H	UE560M-72H
Maximum Power (Pmax/W)	540	545	550	555	560
Open Circuit Voltage (Voc/V)	49.44	49.54	49.64	49.74	49.84
Short Circuit Current (Isc/A)	13.86	13.93	14	14.07	14.14
Voltage at Maximum Power (Vmp/V)	40.72	40.81	40.9	40.99	41.08
Current at Maximum Power (Imp/A)	13.27	13.36	13.45	13.54	13.64
Efficiency(%)	20.9	21.09	21.29	21.48	21.67

Core Technologies Of United Energy Solar Panel

1. Multi-busbar cell technology

With MBB PV cell technology, UE panels identify 10 / 11 busbar as the best solution by taking comprehensive account of solar cell efficiency, production yield and cost.

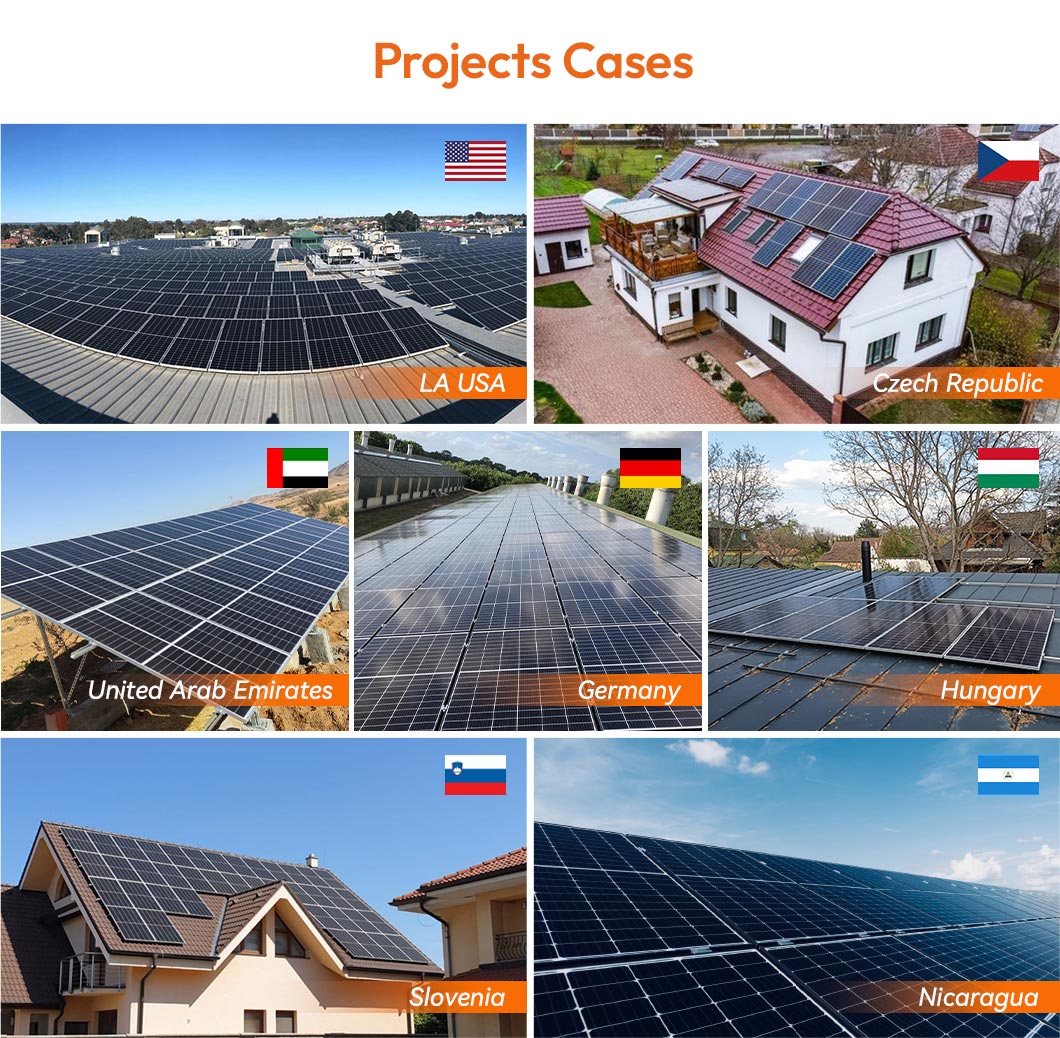

2. Ideal choice for utility and commercial scale projects by reduced BoS and improved ROI

3. Max power 560w which exceed most of china suppliers.

4. Superior Warranty-12 years products warranty 25 years linear power output warranty

5. Full set of safety certification and regulation, meet certificate requirements in most of the countries.

Why Choose Us

United Energy focusing on R&D and manufacture of solar energy systems, meet EU and U.S. regulations, dedicated to making safer and more efficient Solar Energy Solutions.

50%+ of the sales engineers are having 10+ years experience you can always trust UE team since they have developed 5,000+ overseas distributors and Installers from ground up.

FAQ：

What watts of this panel?

Mono 540w 545w 550w 560ww solar panel

What dimension of this panel?

2279*1134*35mm

How much is the loading quantity and shipping method?

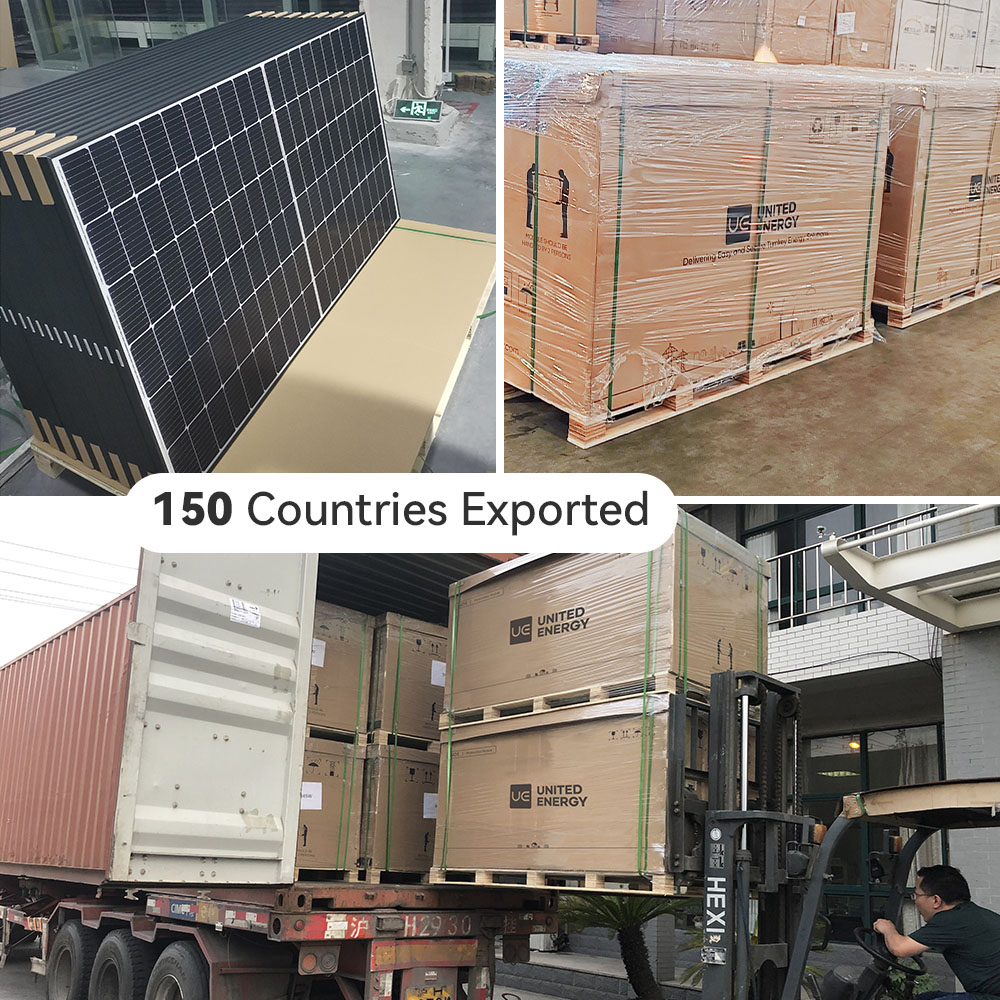

31pcs/pallet ; 155pcs/20GP ; 620pcs/40HQ; Shipping normally by sea because of the heavy weight, but we can provide DDP(door-to-door) service if needed.

How long is the Delivery time?

Normally production will takes around 10 workings days, depends on the order quantity.
