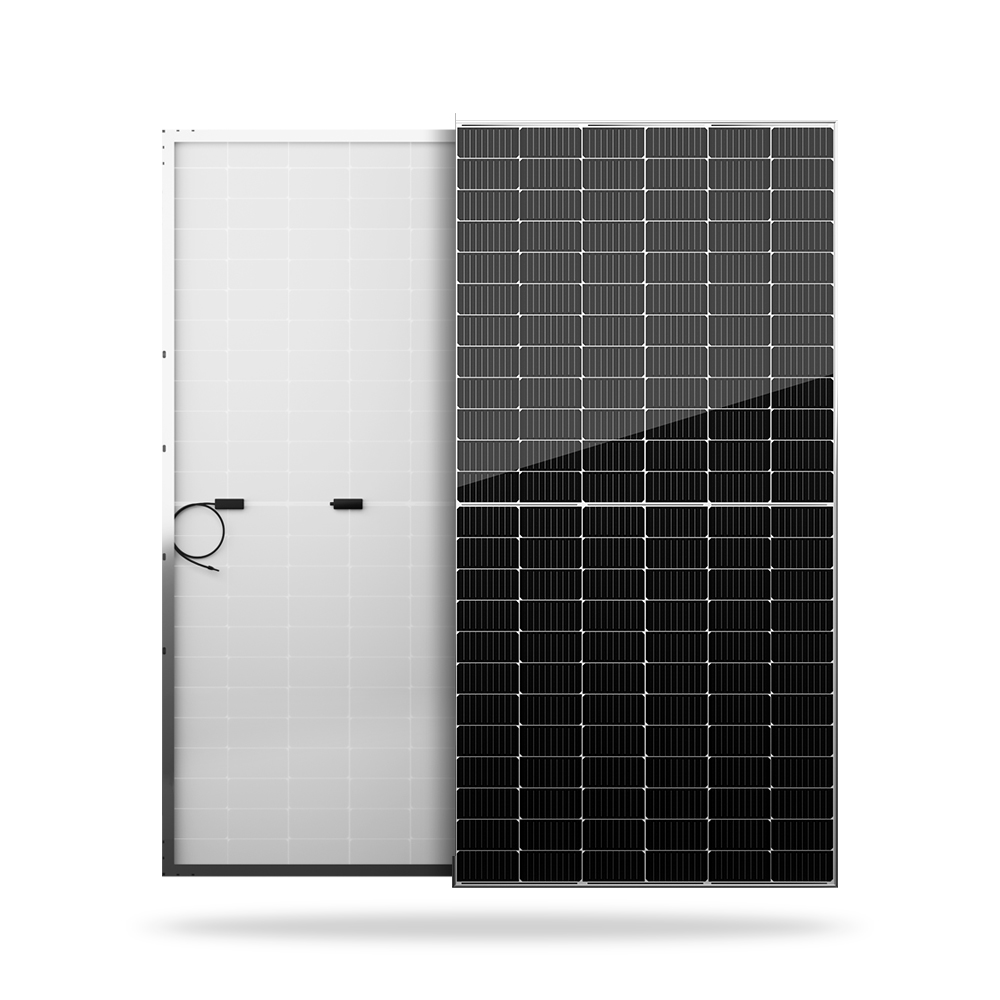

United Energy Monocrystalline PV Module 450W 460W 470W Solar Panel

United Energy Monocrystalline PV Module 450W 460W 470W Solar Panel

UNI 4 Series 144 Half Cells PV Panel 450W 455W 460W 465Wp 470Watt

1. MBB& half-cut technology, higher efficiency

2. 25 years warranty for material, 30 years warranty for liner power output

3. Max model Eff. 21.63%

4. Higher energy yield in low irradiation with lower operating temperature

Brand :
United Energy Or OEM Service
Max. Efficiency :
21.9%
Number of Cells :
144 Cells (6x24)

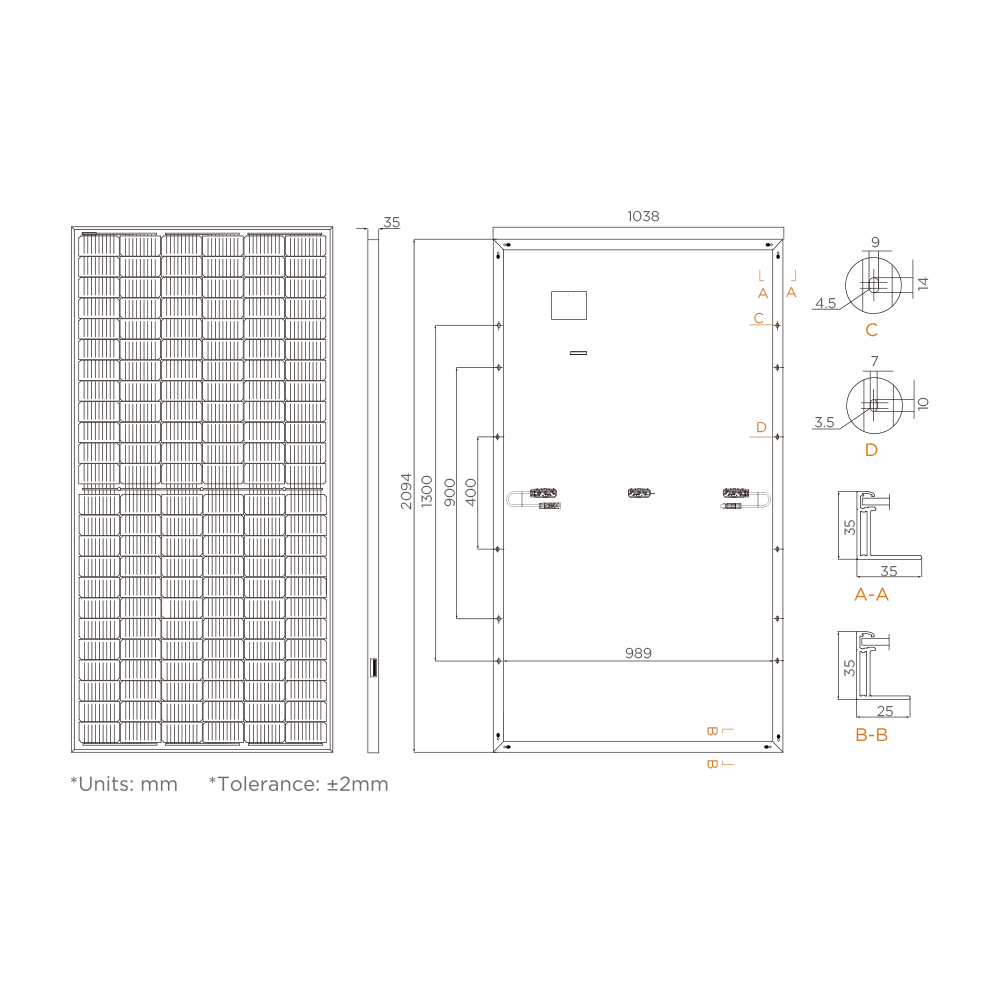

Dimension :
2094 x 1038 x 30mm
Weight :
23.5kg
Junction Box :
IP68 Rated, 3 Diode
Cable :
4.0mm2, Portrait: 300mm / Landscape: 1300mm
Wind/Snow Load: :
2400Pa/5400Pa
Connector :
MC4 Compatible
Power Range :
445w-475w
Warranty :
25 Years
Payment :
T/T,Credit Card, Paypal, Western Union
Certification :
IEC/CE/TUV/CSA/CEC/UL

Inquiry now

product introduction

United Energy founded in 2009, National high-tech enterprise,focus on solar panel R&D obtained more than 100 patents.

Quality is the Company Culture of UNITED ENERGY!

1. By using half-cells, the electrical current ( i ) flowing in each busbar is halved. Therefore, the amount of internal losses in a half-cut module is 1/4 of a full sized cell module

2. Positive power tolerance (0 +5W) guaranteed

3. High module conversion efficiency (up to 21.9%)

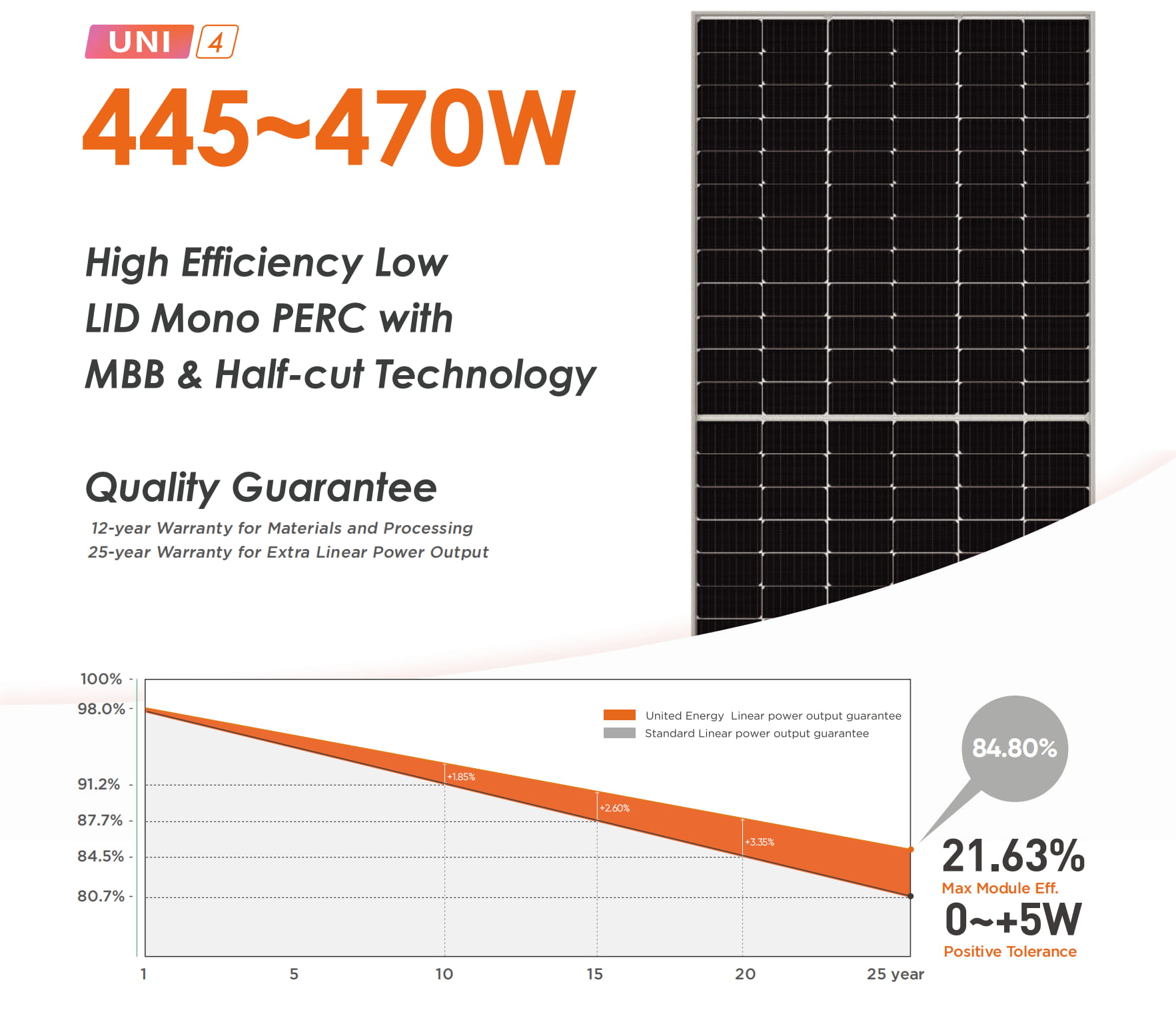

4. Slower power degradation enabled by Low LID Mono PERC technology: first year <2%,0.55% year 2-25

5. Solid PID resistance ensured by solar cell process optimization and careful module BOM selection

6. Higher energy yield with lower operating temperature

7. Reduced hot spot risk with optimized electrical design and lower operating current

Electrical Specification

Model Number	UE445M-72H	UE450M-72H	UE455M-72H	UE460M-72H	UE465M-72H	UE470M-72H
Maximum Power (Pmax/W)	445	450	455	460	465	470
Open Circuit Voltage (Voc/V)	49.4	49.6	49.8	50	50.2	50.4
Short Circuit Current (Isc/A)	11.46	11.53	11.6	11.67	11.74	11.81
Voltage at Maximum Power (Vmp/V)	40.8	41	41.2	41.4	41.6	41.8
Current at Maximum Power (Imp/A)	10.91	10.98	11.05	11.12	11.18	11.25
Efficiency(%)	20.48	20.71	20.94	21.17	21.4	21.63

Key Features of United Energy Solar Panel：

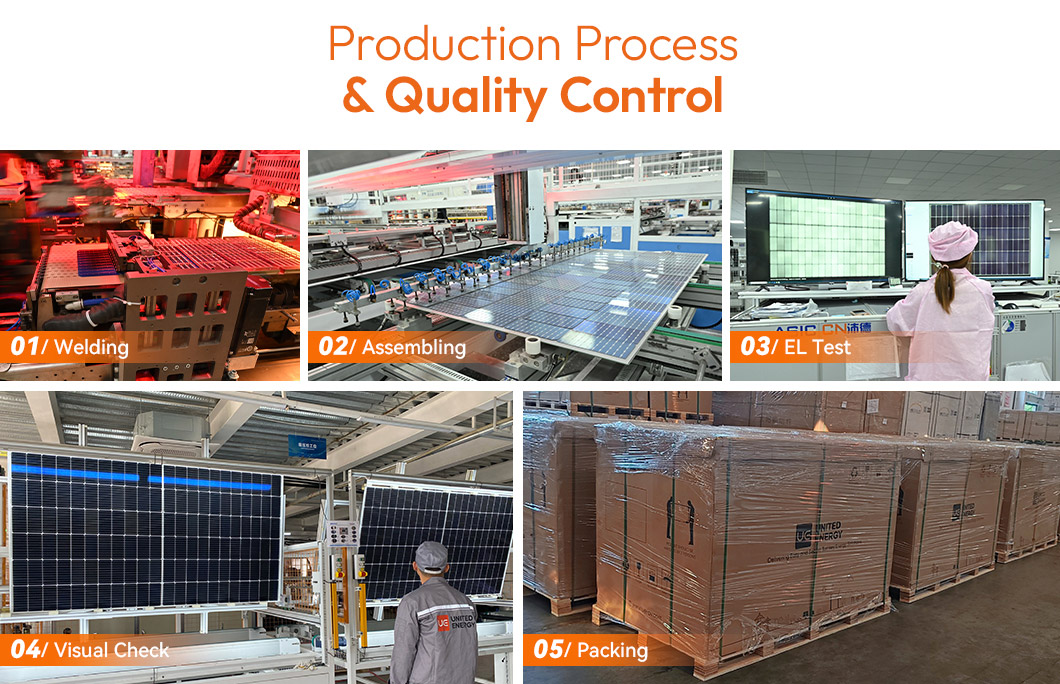

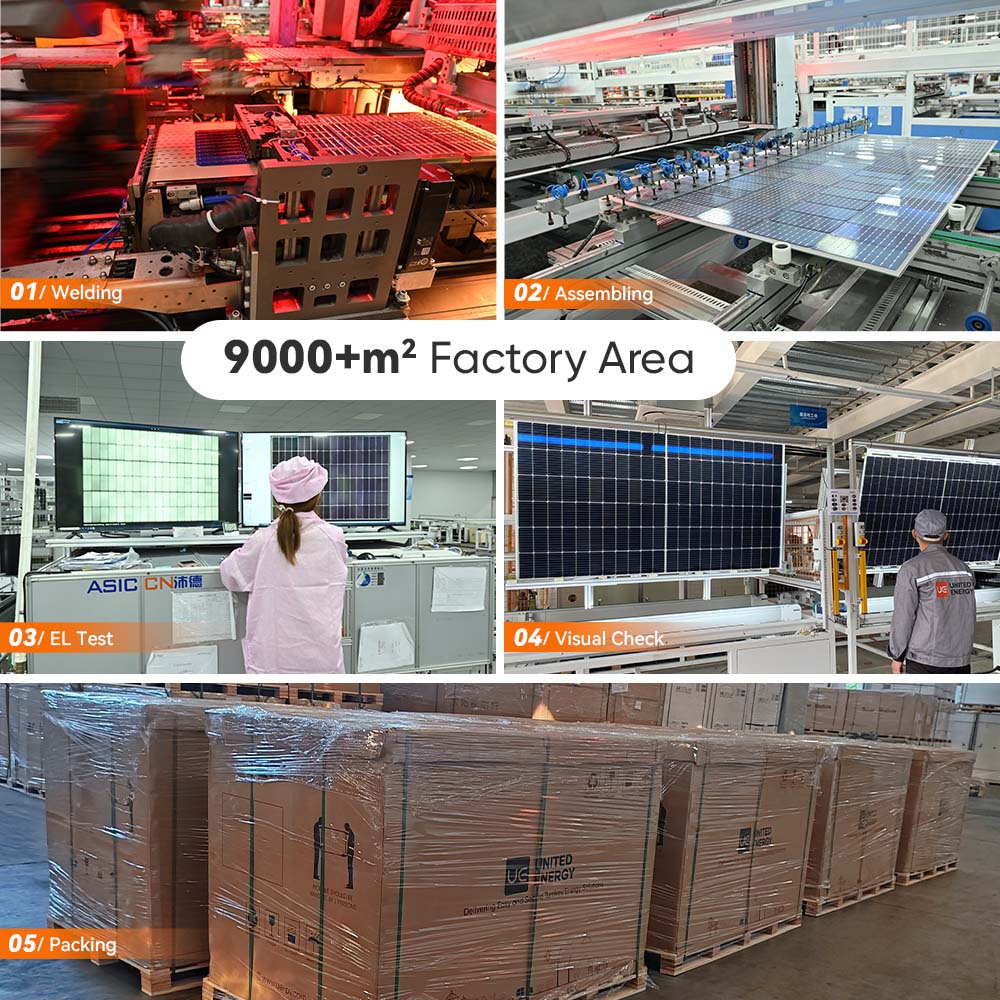

1.Three times EL test to ensure best quality

2.Superior Warranty-12 years products warranty 25 years linear power output warranty

3.Ideal choice for utility and commercial scale projects by reduced BoS and improved ROI

4.Excellent wind load 2400Pa & snow load 5400Pa under certain installation method

5. Full set of safety certification and regulation, meet certificate requirements in most of the countries.

Why Choose Us

United Energy focusing on R&D and manufacture of solar energy systems, meet EU and U.S. regulations, dedicated to making safer and more efficient Solar Energy Solutions.

50%+ of the sales engineers are having 10+ years experience you can always trust UE team since they have developed 5,000+ overseas distributors and Installers from ground up.

FAQ：

What watts of this panel?

Mono 450w 460w 470w high efficiency solar panel.

What dimension of this panel?

2094*1038*30mm

How much is the loading quantity and shipping method?

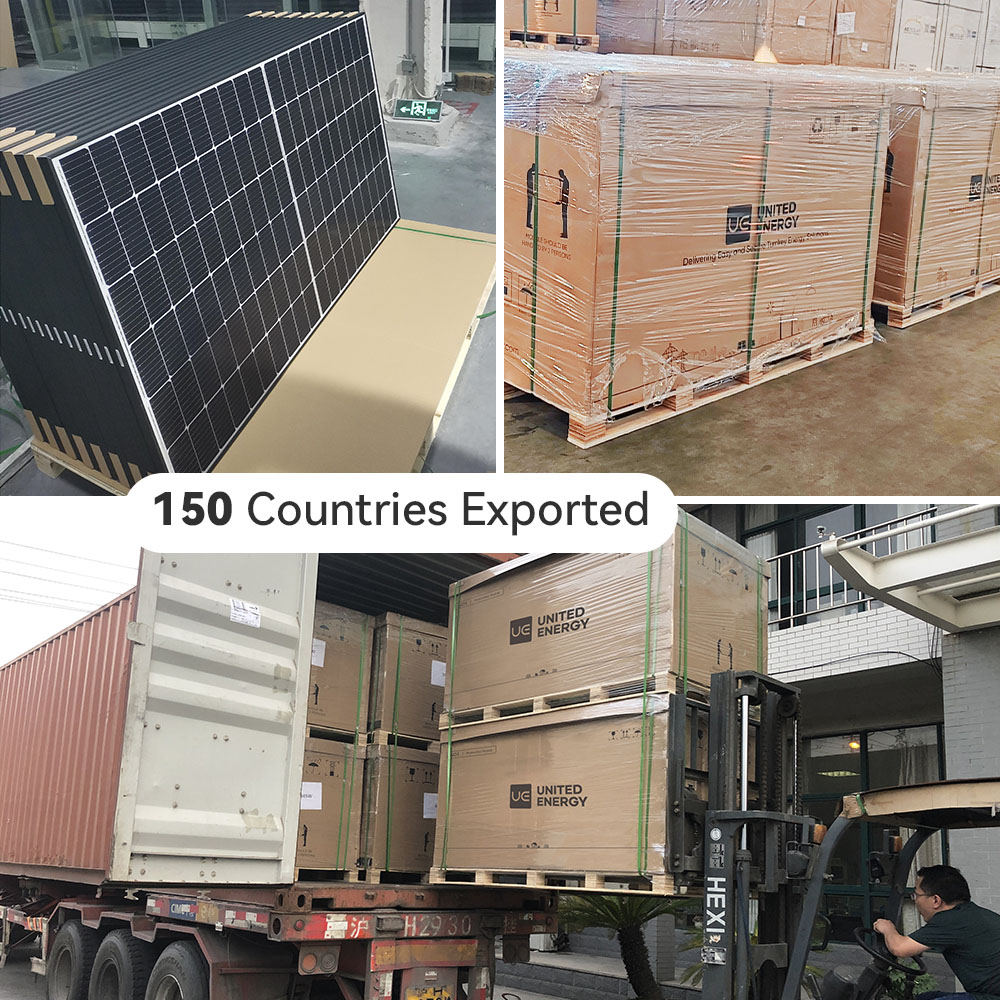

36pcs/pallet. 155pcs/20ft. 792pcs/40HQ ; Shipping normally by sea because of the heavy weight, but we can provide DDP(door-to-door) service if needed.

How long is the Delivery time?

Normally production will takes around 10 workings days, depends on the order quantity.
