United Energy 560W 560 watt solar panel price Europe warehouse

United Energy 560W 560 watt solar panel price Europe warehouse

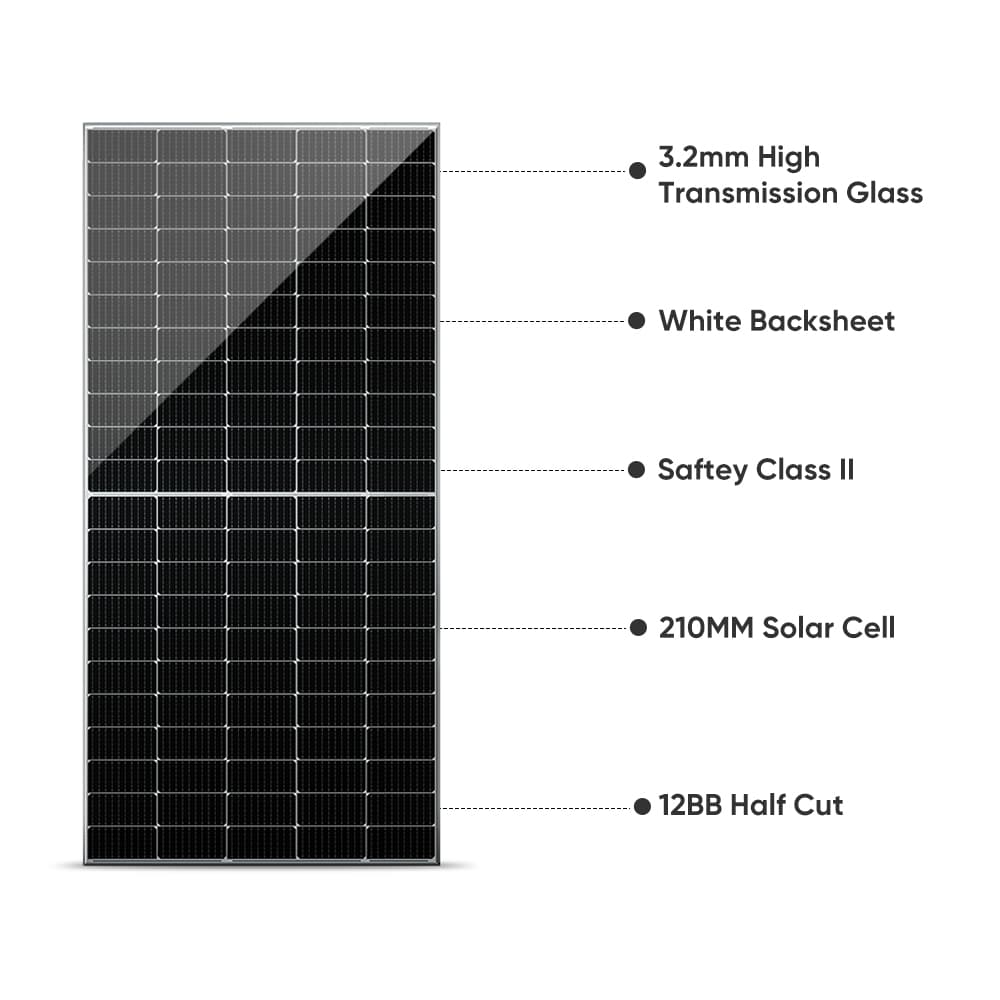

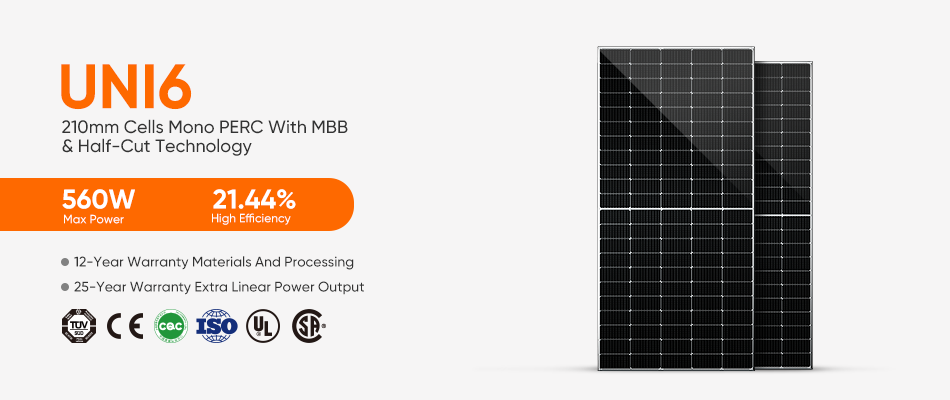

UNI 6 Series 110 Half-Cells Mono Solar Module 540watt 550W 555W 560Wp

Bloomberg Tier 1 PERC Technology MBB Photovoltaic Solar Panel Module Based on 210mm Solar Cell

1、PERC technology, higher Effi. up to 21.4%

2、Max. power up to 560W, high power, less cost

3、12 years warranty for materials and processing, 25 years warranty for liner output power

Brand :
United Energy or OEM Service
Max. Efficiency :
21.4%
Number of Cells :
110Cells (5x22)
Dimension :
2384*1096*35mm
Weight :
28.6kg
Junction Box :
IP68 Rated, 3 Diode
Cable :
4.0mm2, Portrait: 300mm / Landscape: 1300mm
Wind/Snow Load: :
2400Pa/5400Pa
Connector :
MC4 Compatible
Power Range :
540-560w
Warranty :
25 Years
Payment :
T/T,Credit Card, Paypal, Western Union
Certification :
IEC/CE/TUV/CSA/CEC/UL

Inquiry now

product introduction

United Energy founded in 2009, National high-tech enterprise,focus on solar panel R&D obtained more than 100 patents.

Quality is the Company Culture of UNITED ENERGY!

1. The hot spot temperature of the half-chip module assembly is lower than the temperature of the same-type full-piece module assembly by about 25 ° C, which can effectively reduce the hot spot effect of the solar panel.

2. Half-cut module components meet the 1500V system voltage design requirements, which can reduce the system-side cost by about 10%

3. Effectively reduce the loss of power generation caused by occlusion when there is shadow occlusion and ash accumulation or snow accumulation.

4. Reduce the first year and the average photoinduced attenuation

5. 100% PID Free.

Electrical Specification

Model Number	UE550M-55H		UE555M-55H		UE560M-55H
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)	550	417	555	421	560	425
Open Circuit Voltage (Voc/V)	37.9	35.7	38.1	35.9	38.3	36.1
Short Circuit Current (Isc/A)	18.51	14.92	18.56	14.96	18.61	15
Voltage at Max Power (Vmp/V)	31.6	29.4	31.8	29.6	32	29.8
Current at Max Power (Imp/A)	17.41	14.79	17.46	14.23	17.5	14.27
Module Efficiency(%)	21.05		21.25		21.44
Temp Coefficient of Isc	‘+0.04%/°C
Temp Coefficient of Voc	’-0.25%/°C
Temp Coefficient of Pmax	‘-0.34%/°C

Key Features of United Energy Solar Panel

1.50W increase compared with PERC of the same version

2.Passed the standard test of 3 times IEC for greater reliability

3.HJT new production technology

4. Superior Warranty-12 years products warranty 25 years linear power output warranty

5. Full set of safety certification and regulation, meet certificate requirements in most of the countries.

Why Choose Us

United Energy focusing on R&D and manufacture of solar energy systems, meet EU and U.S. regulations, dedicated to making safer and more efficient Solar Energy Solutions.

50%+ of the sales engineers are having 10+ years experience you can always trust UE team since they have developed 5,000+ overseas distributors and Installers from ground up.
