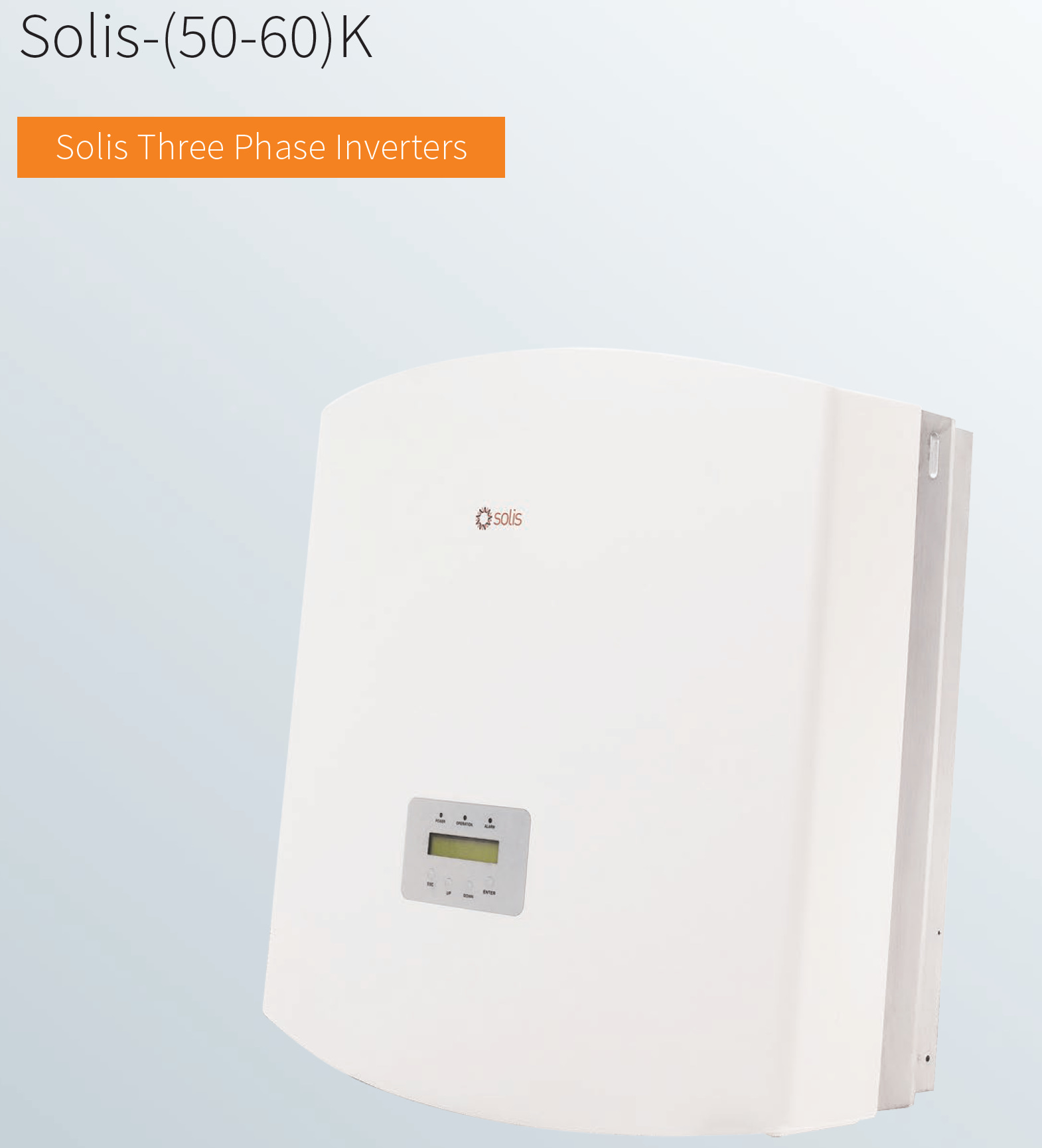

Solis-(50-60)kW three phase series string inverter are suitable for the installation of three-phase input pv system of commercial and industrial PV plants.
Brand :
SOLISMax. Efficiency :
99.0%Dimension :
630*700*357 mmWarranty :
5 yearsCertification :
G98 or G99, VDE-AR-N 4105 / VDE V 0124 ...Product name :
PV String inverterInput Voltage: :
200-1000 VAC Output Voltage :
3/N/PE, 220 V / 380 V, 230 V / 400 VOutput Frequency :
50/60Hz, ±5HzModel Number :
Solis-50K/60KSolis 4G inverter THDi＜3, low harmonic distortion against grid. Adopt anti-resonance,signle transformer can connect 6M+ in parallel. Perfect commercial site monitoring solution, intelligent redundancy fan.

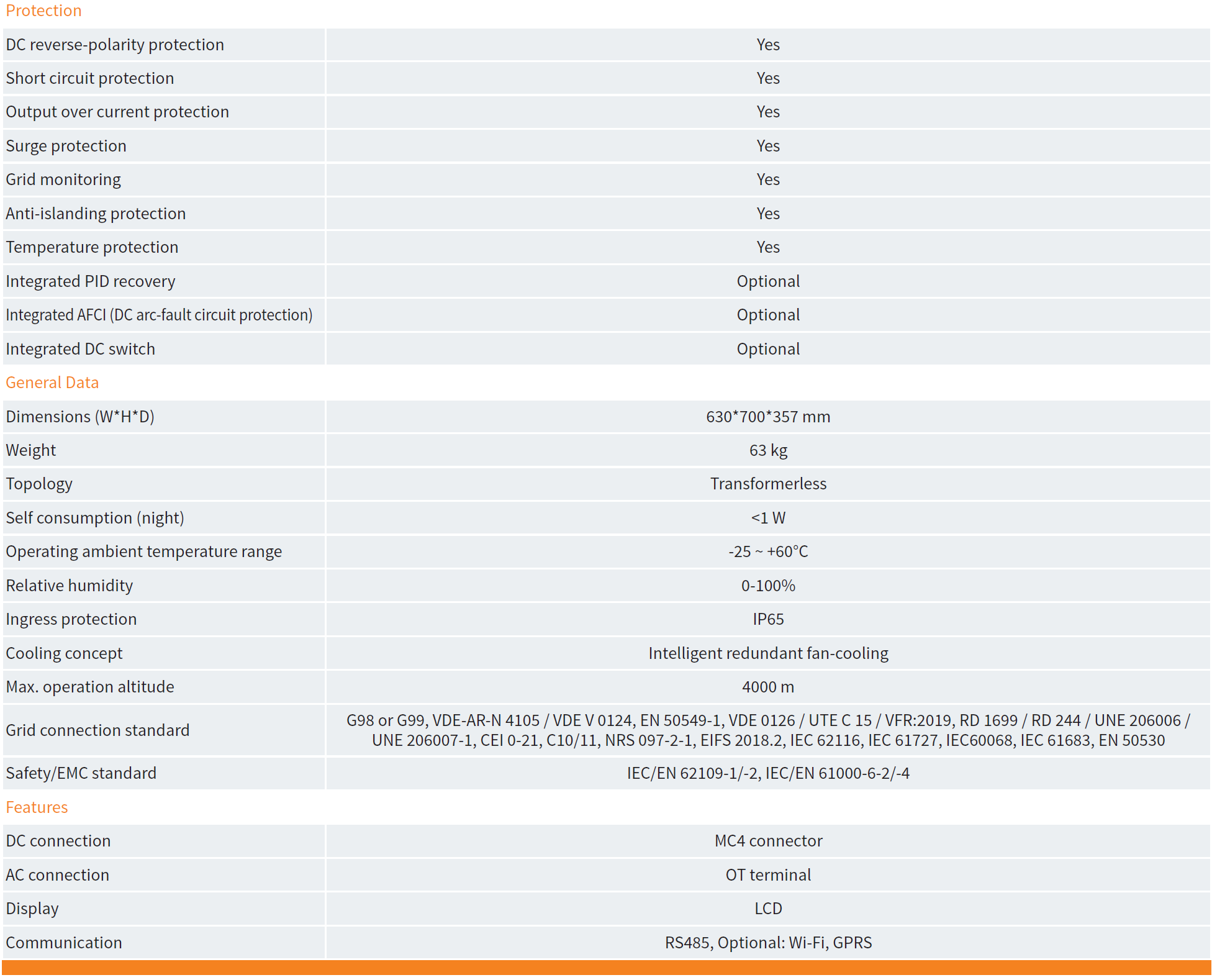

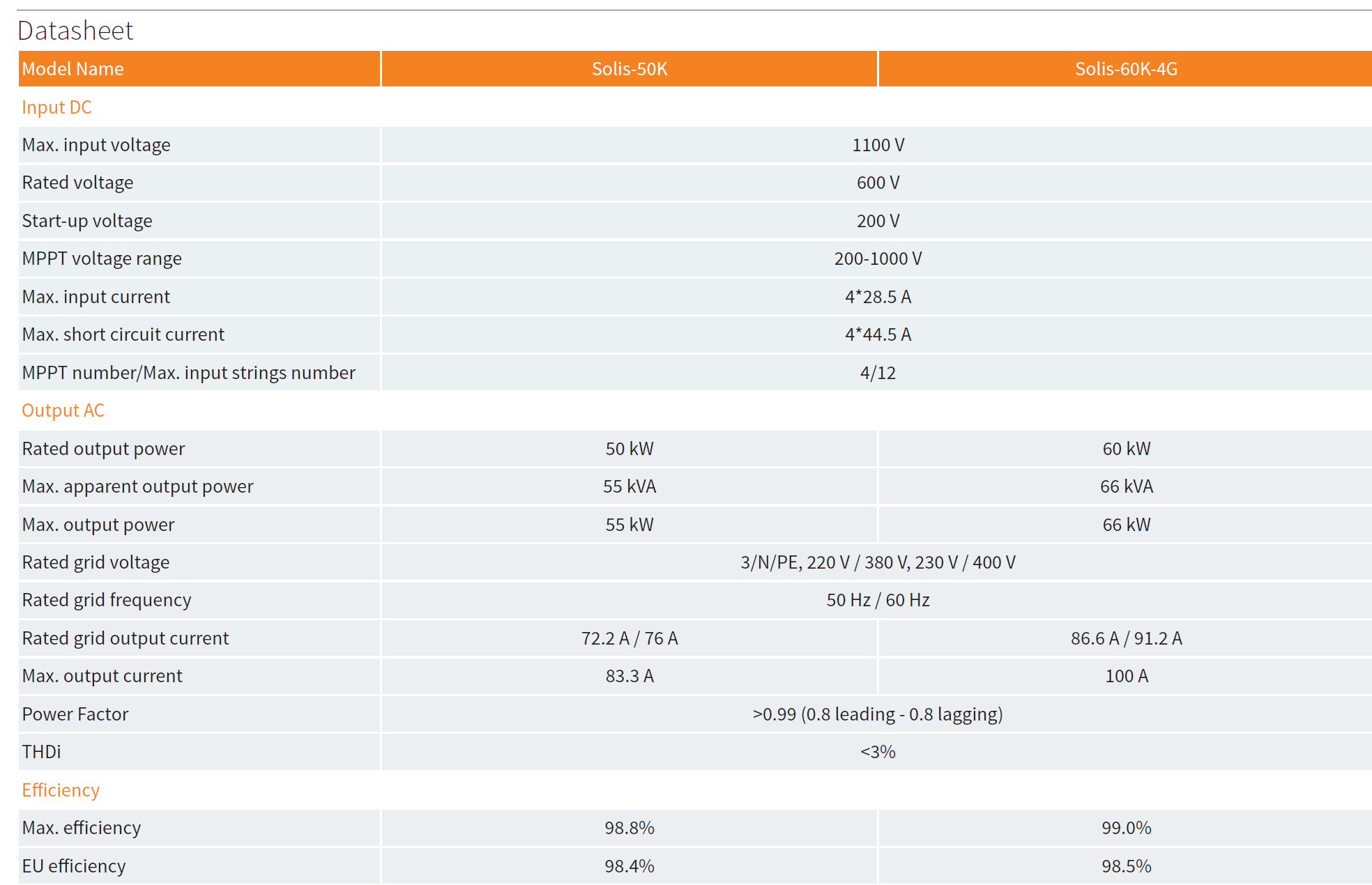

Technical Data:

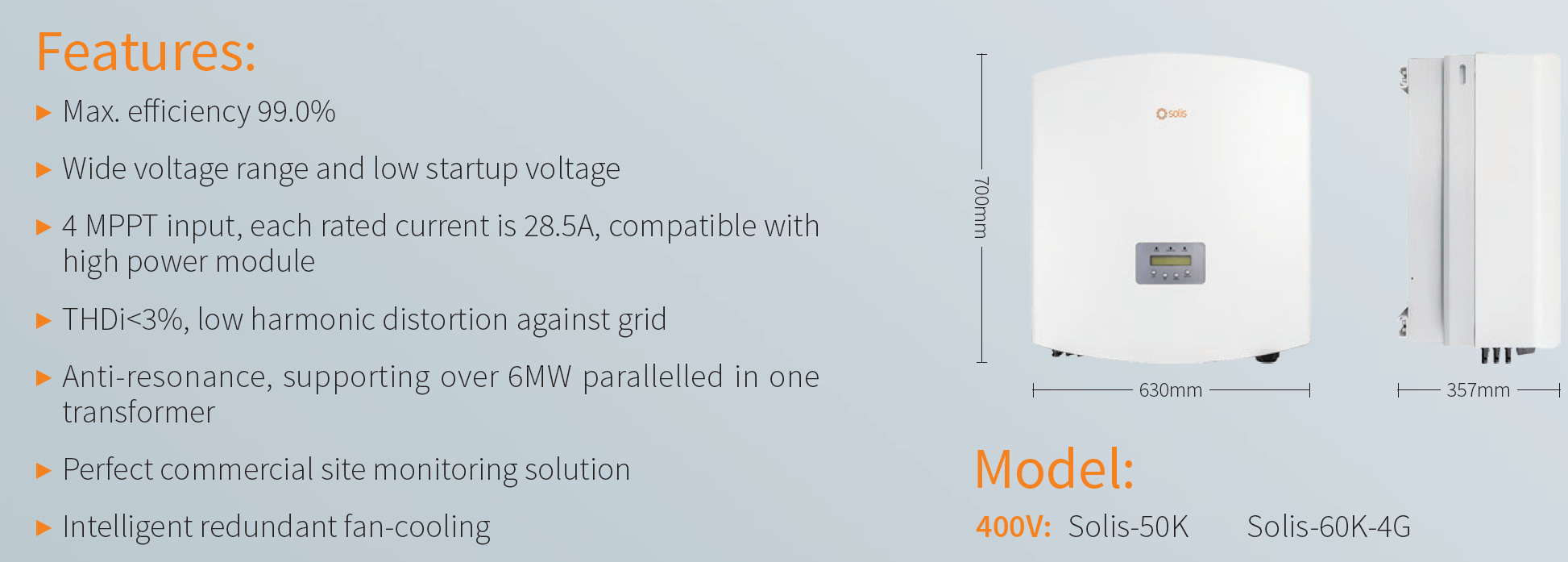

Key Features / Advantages:
* Max. efficiency 99.0%
* Wide voltage range and low startup voltage
* 4 MPPT input, each rated current is 28.5A, compatible with high power module
* THDi<3%, low harmonic distortion against grid
* Anti-resonance, supporting over 6MW parallelled in one transformer
* Perfect commercial site monitoring solution
* Intelligent redundant fan-cooling
FAQ：
Inverter Dimension: 630*700*357mm
Available Certificate:
Grid connection standard : G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 /
UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530
Safety/EMC standard: IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4
