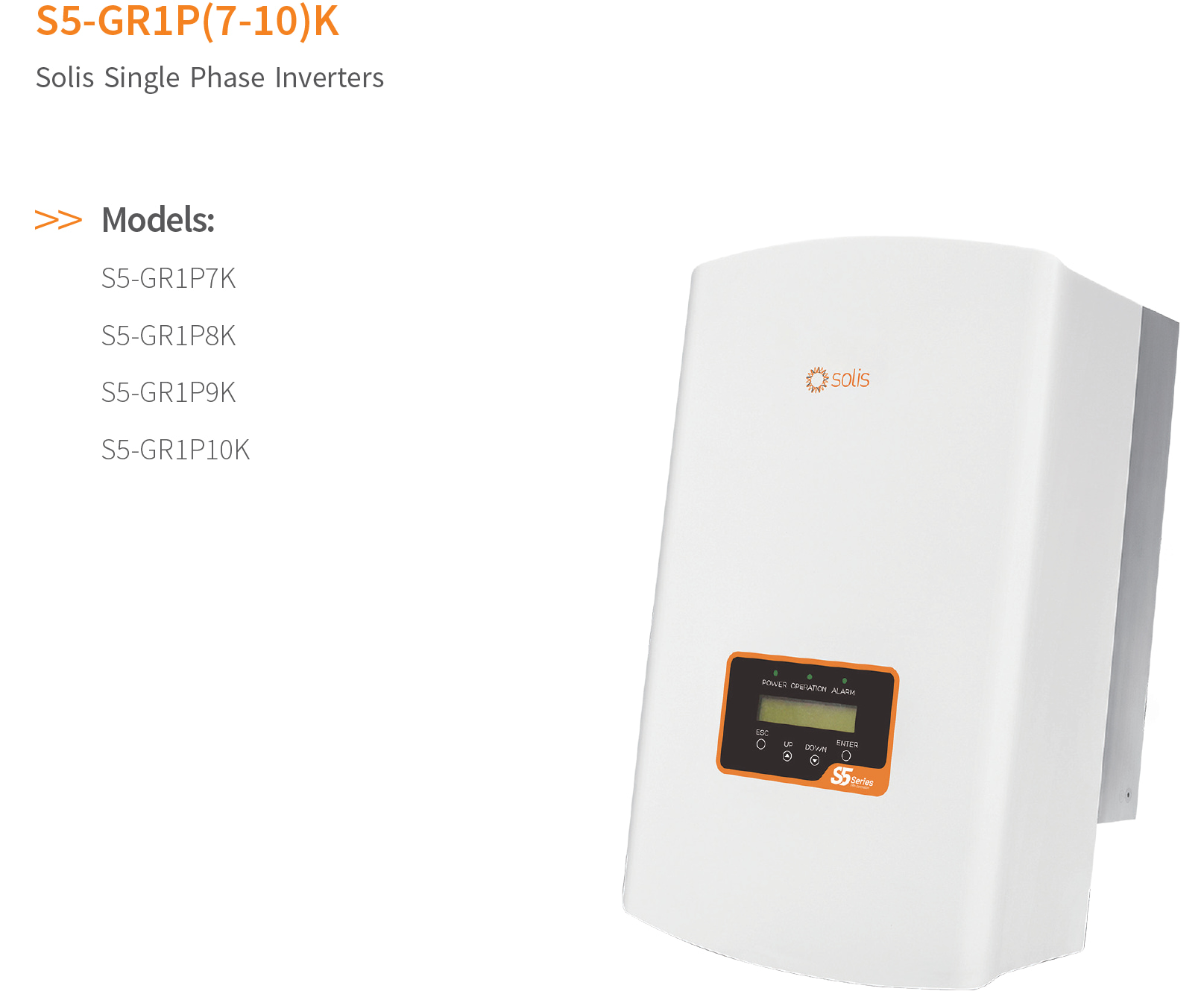

Solis S5-GR1P(7-10)K series inverter is designed for residential PV plants. 3 MPPTs design can effectively reduce string mismatch.
Brand :
SOLISMax. Efficiency :
98.0%Dimension :
333*579*253mmWarranty :
5 yearsCertification :
G99, EN 50549-1, IEC 62116, IEC 61727 ...Product name :
PV String inverterInput Voltage: :
100-500 VAC Output Voltage :
1/N/PE, 220 V / 230 VOutput Frequency :
50/60Hz, ±5HzModel Number :
S5-GR1P(7-10)KCompact and lightweight design, bring easy installation. The protection level is increased to IP66.
Integrated AFCI function can proactively reduce the risk of fire.

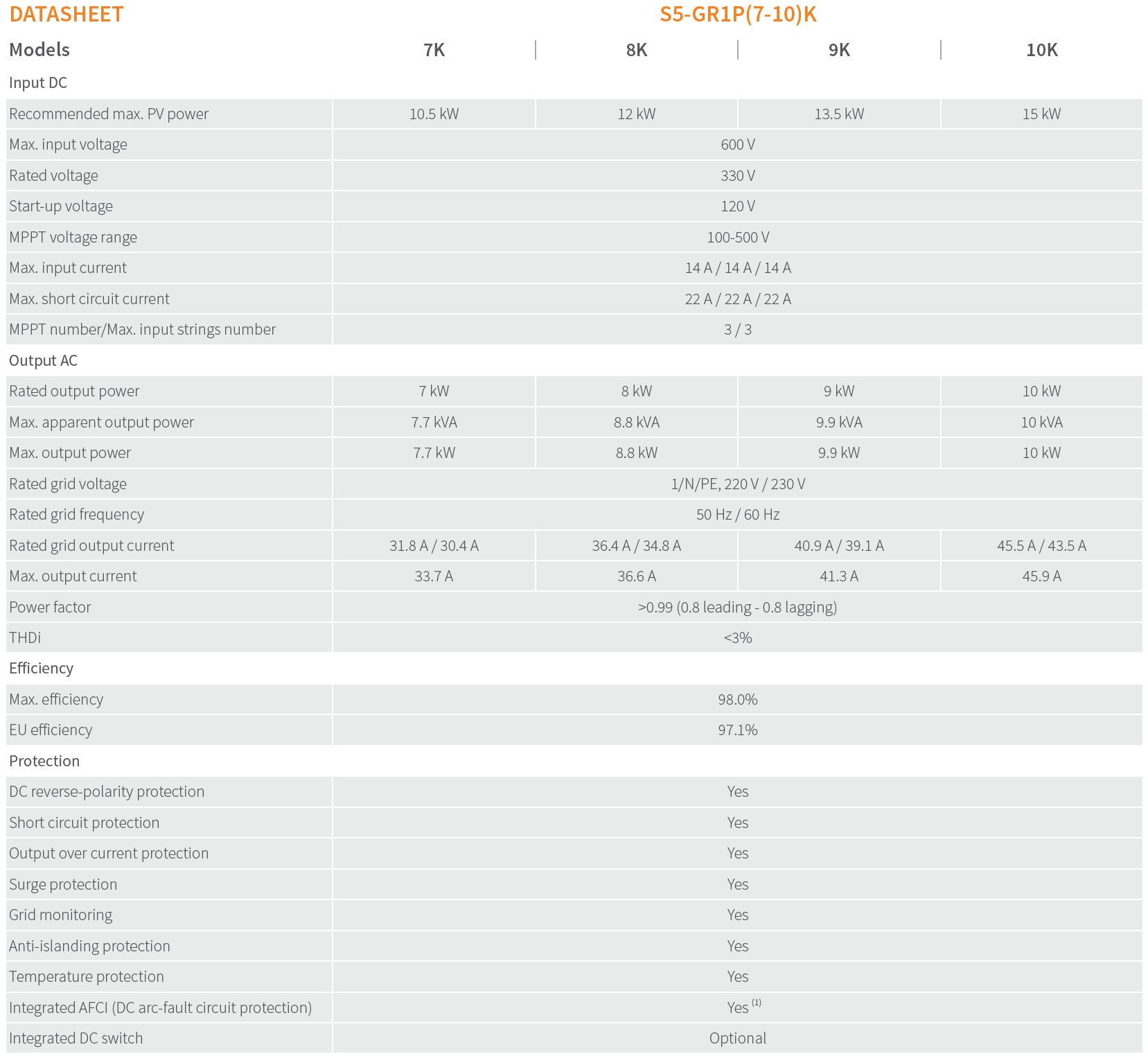

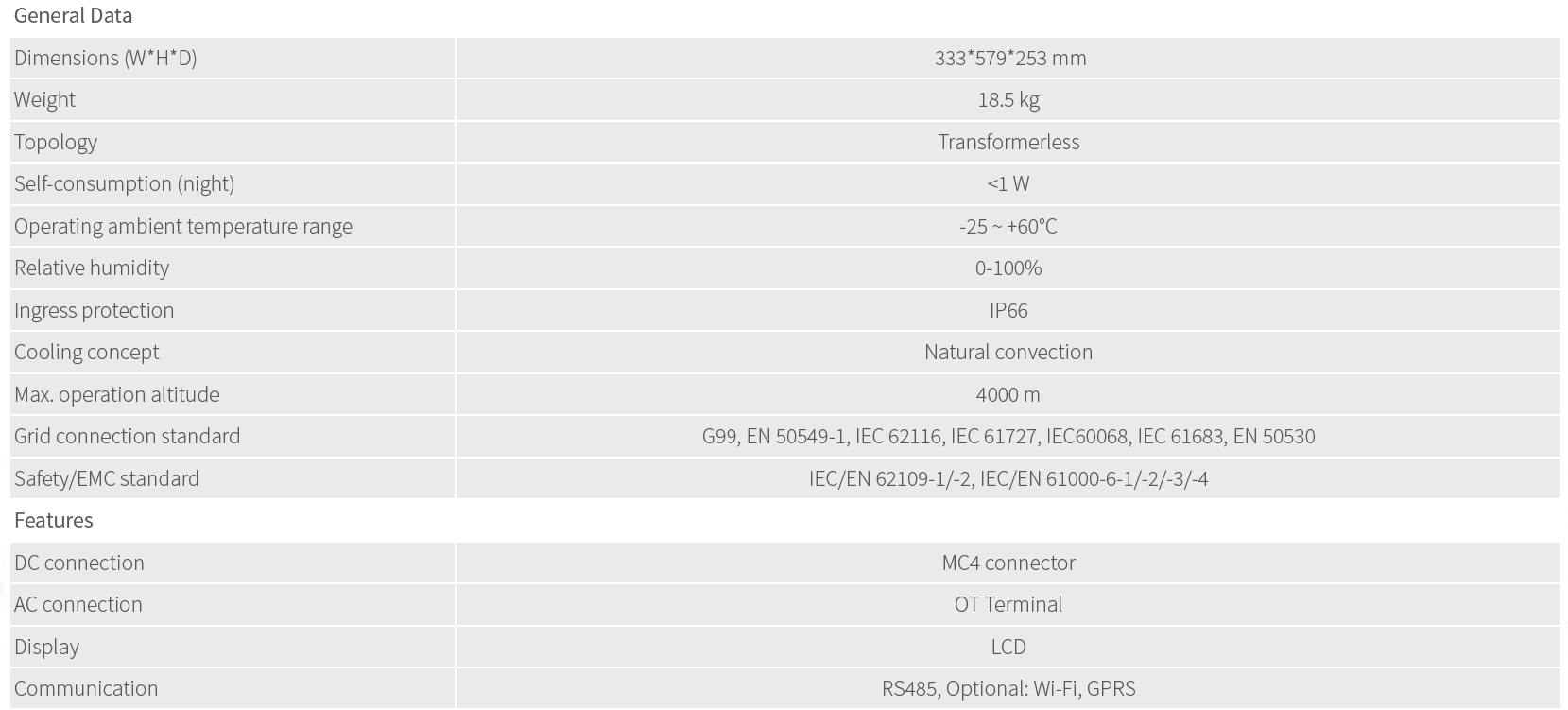

Technical Data:
Key Features / Advantages:
• Max. efficiency 98.0%
• String current up to 14A
• Super high frequency switching technology
• Wide voltage range and low startup voltage
• 3 MPPT design with precise MPPT algorithm
• AFCI protection, proactively reduces fire risk
• Compact and lightweight
• Friendly and adaptable connection to the grid
FAQ:
Inverter Dimension: 333*579*253mm
Available Certificate:
Grid connection standard : G99, EN 50549-1, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530
Safety/EMC standard: IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
