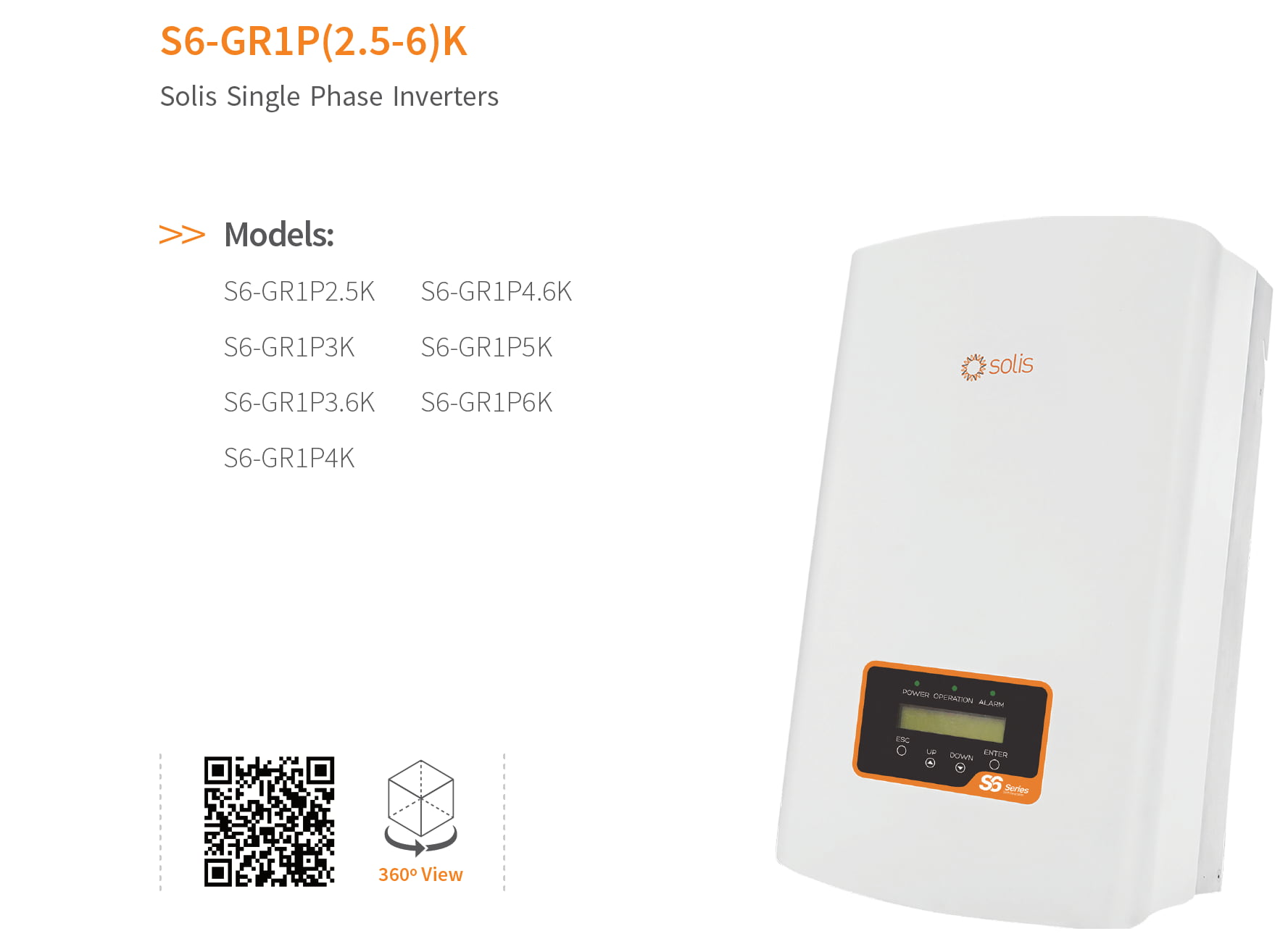

Solis S6-GR1P(2.5-6)K series inverter is designed for residential PV plants. The maximum input current per string is 14A, which is compatible with high-efficiency modules and bi-facial modules.
Brand :
SOLISMax. Efficiency :
97.7%Dimension :
534*419*179mmWarranty :
5 yearsCertification :
G98(2) or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, ...Product name :
PV String inverterInput Voltage: :
2.5kw: 50-450V ; 3-6KW: 90-520VAC Output Voltage :
1/N/PE, 220 V / 230 VOutput Frequency :
50/60Hz, ±5HzModel Number :
S6-GR1P(2.5-6)KCompact and lightweight design, bring easy installation. The protection level is increased to IP66.
Integrated AFCI function can proactively reduce the risk of fire.

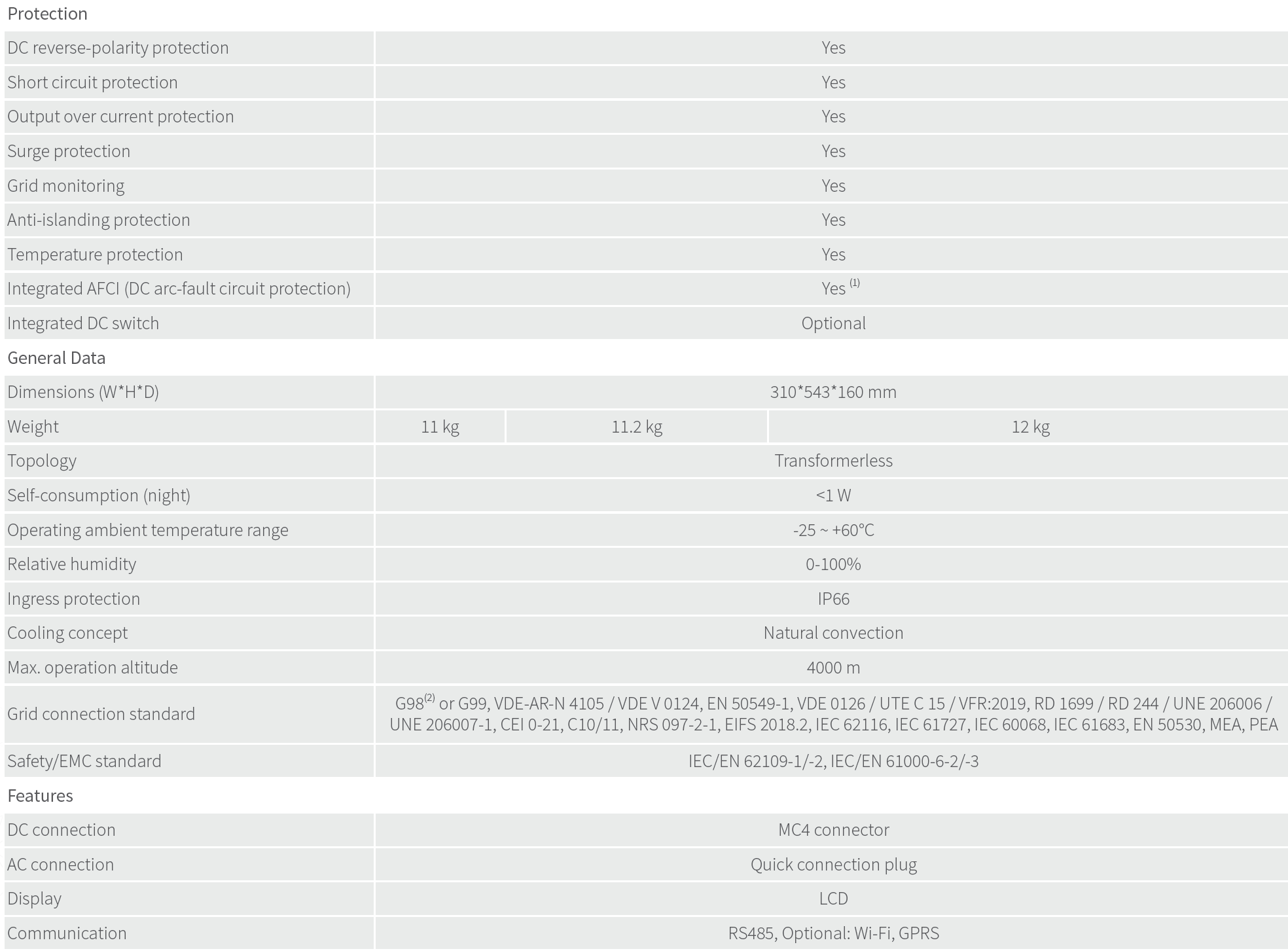

Technical Data:
Key Features / Advantages:
• Max. efficiency 97.7%
• String current up to 14A
• Super high frequency switching technology
• Wide voltage range and low startup voltage
• 2 MPPT design with precise MPPT algorithm
• Intergrated Export Power Manager (EPM)
• AFCI protection, proactively reduces fire risk
• Compact and lightweight
• Friendly and adaptable connection to the grid
FAQ：
Inverter Dimension: 310*543*160mm
Available Certificate:
Grid connection standard : G98(2) or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 /
UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA
Safety/EMC standard: IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-3
