SolaX have developed a range of three phase inverters unrivalled in the industry for their quality, reliability and efficiency.
X3-PRO G2 : 8.0KW | 10.0KW | 12.0KW | 15.0KW | 17.0KW | 20.0KW | 25.0KW | 30.0KW
Brand :
SOLAXMax. Efficiency :
98.3%Dimension :
534*419*179mmWarranty :
5 yearsCertification :
EN62109-1/-2, EN61000-6-1;EN61000-6-2 ...Product name :
PV String inverterInput Voltage: :
160-850AC Output Voltage :
3/N/PE, 230/400(310-480)Output Frequency :
50/60Hz, ±5HzModel Number :
X3-Pro G2 8-30kwThe SolaX three phase inverters boast a wide MPPT voltage range to allow for more energy harvesting and have a maximum input voltage of 1100V, with a maximum efficiency of 98.5%.
In addition, SolaX three phase inverters are IP66 rated, have no internal fan and come with optional ‘plug & play’ WIFI.

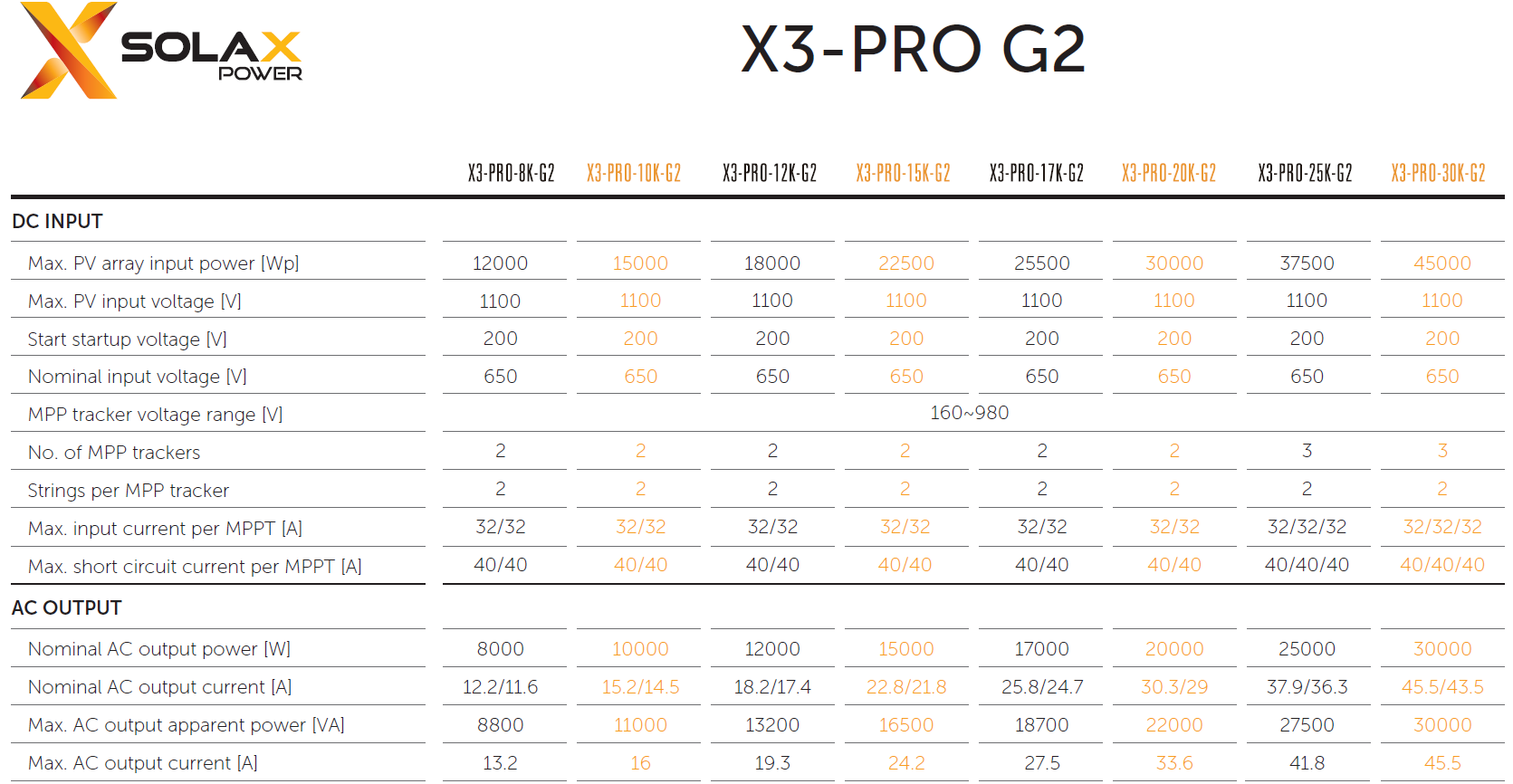

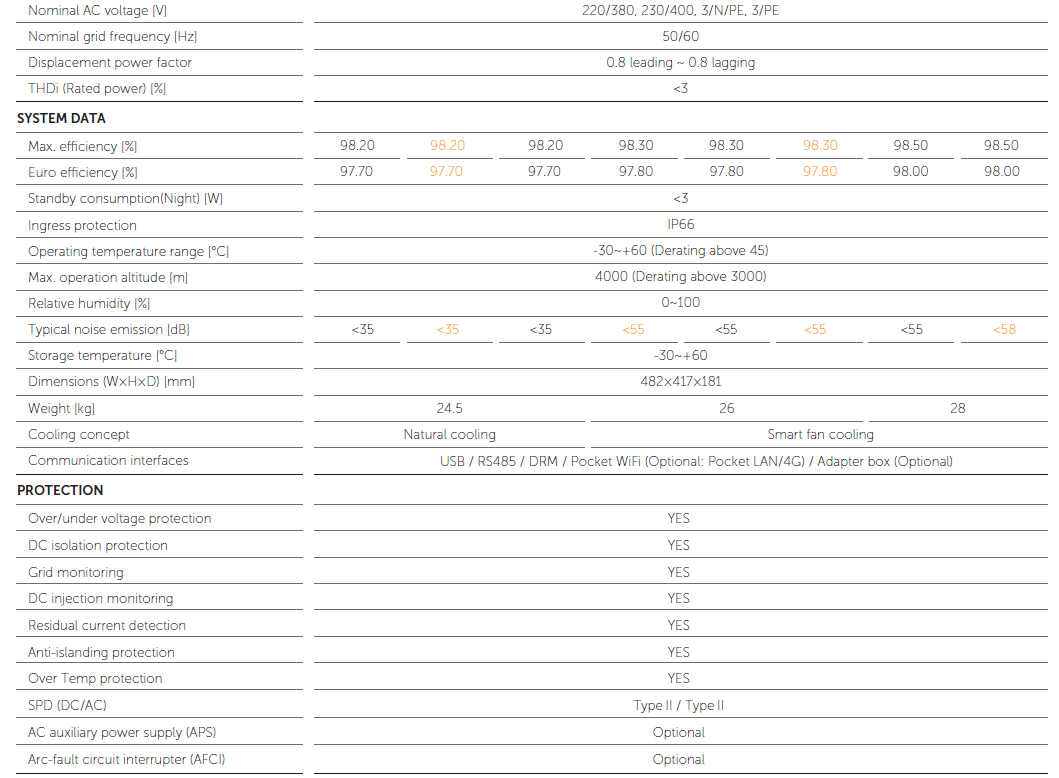

Technical Data:

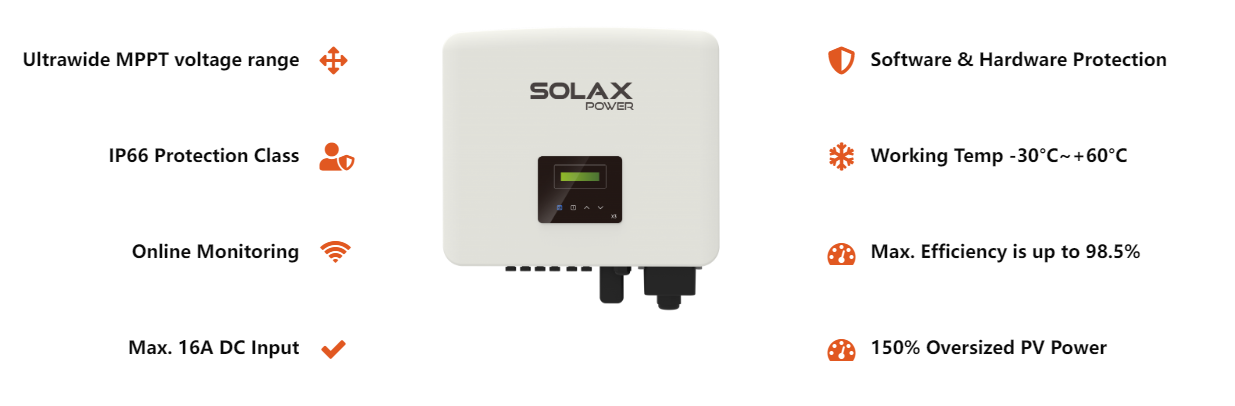

Key Features / Advantages:
High-efficiency
Maximum efficiency is up to 98.5%
Low startup voltage, ultrawide MPPT voltage range
150% DC oversizing, 110% AC overloading output
In-built global MPP scan for higher yield efficiency
Safe
SPD type II protection on both AC&DC
ARC protection (Optional)
IP66 protection
Smart
Built-in export power control
Intelligent load management - heat pump (Adapter Box required)
24h monitoring and maintenance (Optional)
Multiple monitoring methods, Pocket WiFi/LAN (Optional)/4G (Optional)
Economic
Ultra-high power density
Maximum 32A DC input current per MPP tracker, support high power solar panels
Up to 3 MPPTs, 2 strings per MPPT
FAQ:
Inverter Dimension: 482×417×181mm

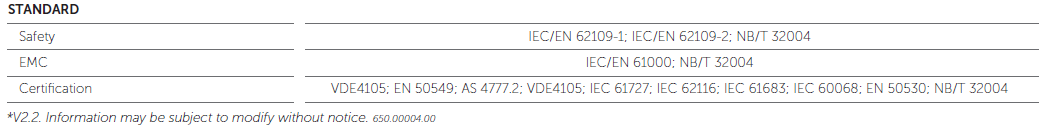

Certificate:
Safety: IEC/EN 62109-1; IEC/EN 62109-2; NB/T 32004
EMC : IEC/EN 61000; NB/T 32004
Certification : VDE4105; EN 50549; AS 4777.2; VDE4105; IEC 61727; IEC 62116; IEC 61683; IEC 60068; EN 50530; NB/T 32004
