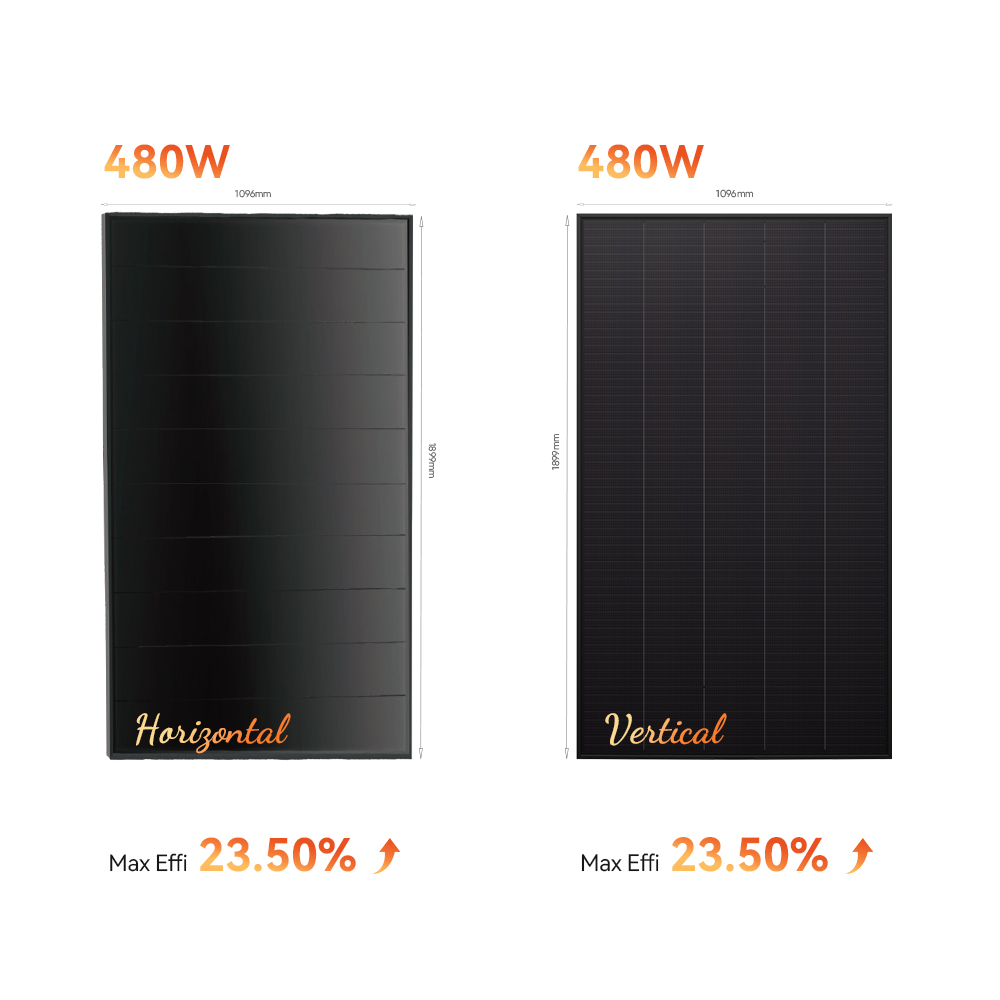

480 Watt Horizontal Shingled Solar Panels All Black Solar Module

About products:

What type of solar panel is this? This is a 480 watt Horizontal Shingled Solar Panel with a high efficiency of 23.5%. Manufactured by UE.
What are its selling points? Shingling solar tech: Aesthetic, safe, reliable, low-cost, eco-friendly. Minimizes shading loss, boosts power generation.
Logistics information：1899*1096*30mm ，36pcs per pallet，864pcs per 40'HC.
490 Watt Shingled Solar Panel Price：US$0.16 to US$0.18 per watt, so its price is US$76.8-86.4.The market is fluctuating Inquire now！

About UE:

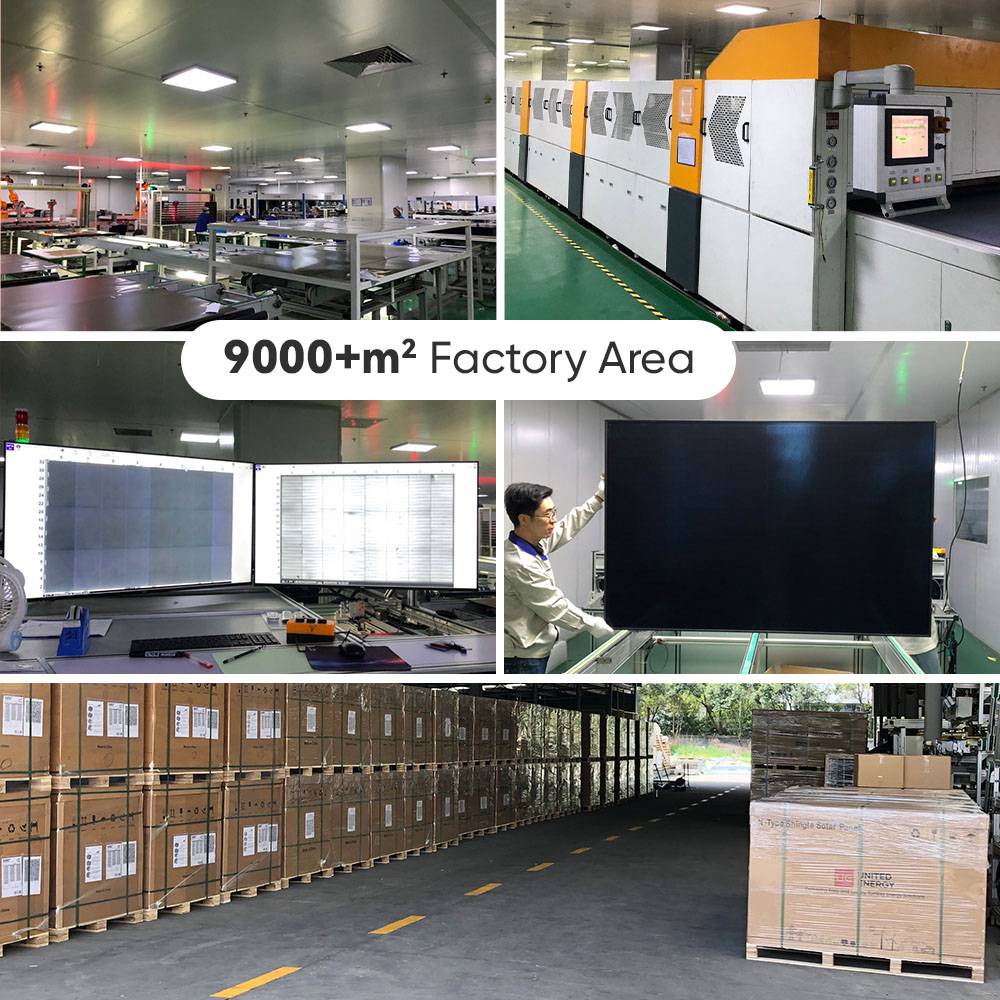

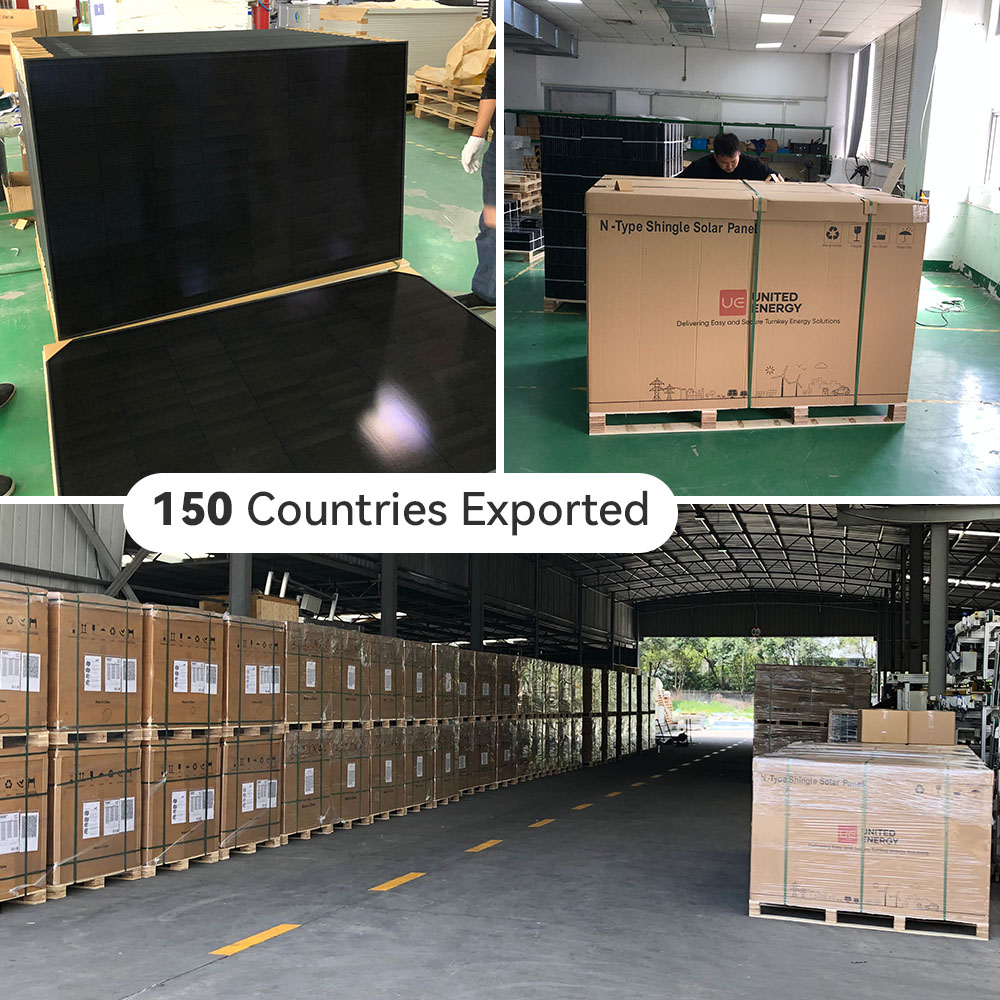

What kind of company are we? We have fourteen years of industry experience, over two hundred employees, and export to 150 countries and regions.
What products do we have? We export solar panels, including UE brand and tier 1 brands such as Jinko, Longi, JA, Trina, and Tongwei. We also export solar energy systems, inverters, energy storage batteries, and other products."
What services do we provide? We offer turnkey services - customizing a complete set of products according to your needs. We have dedicated logistics, design, and electrical engineering teams to provide services.

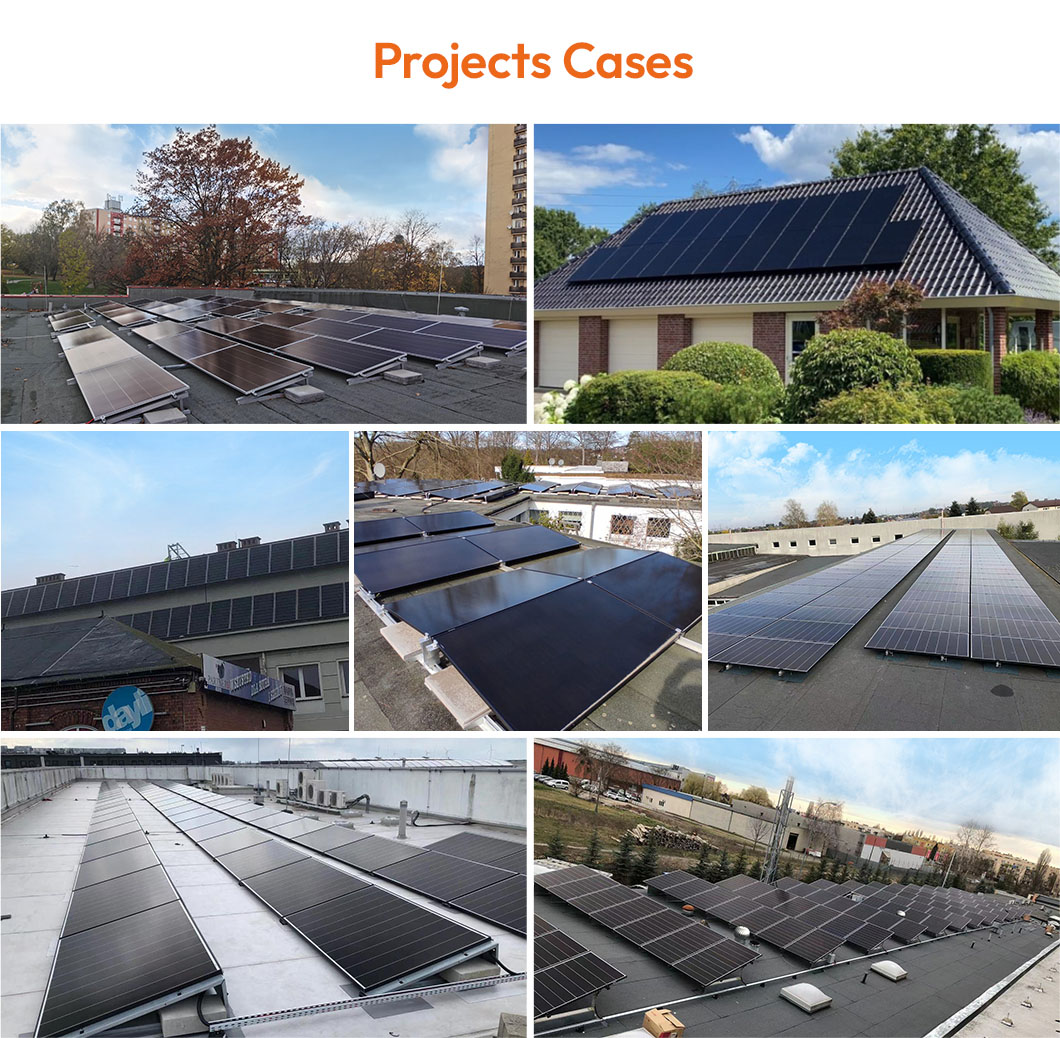

What project cases do we have? Please click to view.

Mechanical Characteristics		Operating Characteristics
Solar Cells	Mono-crystalline silicon	Operating Characteristics
No. of Cells	320 (5×64)	Maximum Surface Load Capacity [Pa]	Front 5400/ Back 2400

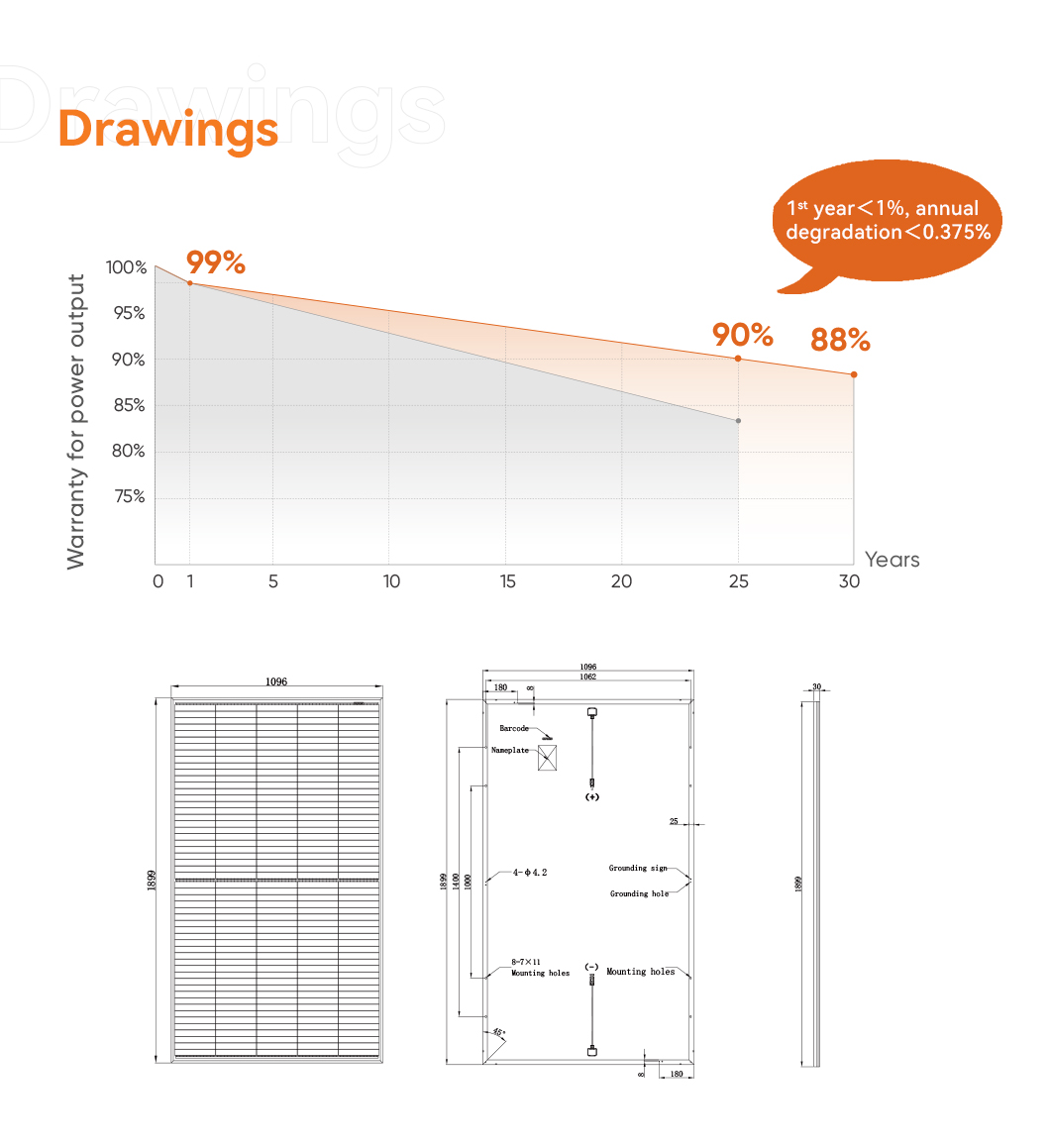

Dimensions	1899 × 1096 × 30mm	Maximun System Voltage	DC 1500V/1000V (IEC)
Weight	21.8kg	Maximun Series Fuse Rating	20A
Glass Thickness	3.2mm high transmittance tempered glass	Power Tolerance	0~+5W
Frame	Anodized aluminium alloy	Temperature Characteristics
Junction Box	IP68	Temperature Characteristics
Output Cables	4mm2 , +300/-1000mm(Vertical), +220/-180mm(Horizontal)	Operating Module Temperature	-40°C ~ +85°C
Connectors	MC4 original /MC4 compatible	Temperature Coefficient of Voc	-0.24%°C
Withstanding Hail	Maximum diameter of 25 mm with impact speed of 23 m/s	Temperature Coefficient of Isc	+0.04%°C
Packaging	36pcs/box, 864pcs/40'container	Temperature Coefficient of Pmax	-0.26%°C

Electrical Parameters (STC*)
Module Type:	470	475	480	485	490
Maximum Power (Pmax/W)	470	475	480	485	490
Module Efficiency (%)	22.6	22.8	23.1	23.3	23.5
Optimum Operating Voltage (Vmp/V)	36.90	37.00	37.10	37.20	37.30
Optimum Operating Current (lmp/A)	12.74	12.84	12.95	13.05	13.15
Open Circuit Voltage (Voc/V)	44.30	44.40	44.50	44.60	44.70
Short Circuit Current (lsc/A)	13.56	13.67	13.78	13.89	13.99

Electrical Characteristics (NMOT*)
Maximum Power (Pmax/W)	355	359	363	367	371
Optimum Operating Voltage (Vmp/V)	35.20	35.30	35.40	35.50	35.60
Optimum Operating Current (Imp/A)	10.09	10.17	10.26	10.34	10.43
Open Circuit Voltage (Voc/V)	42.30	42.40	42.50	42.60	42.70
Short Circuit Current (lsc/A)	10.95	11.04	11.13	11.22	11.31
