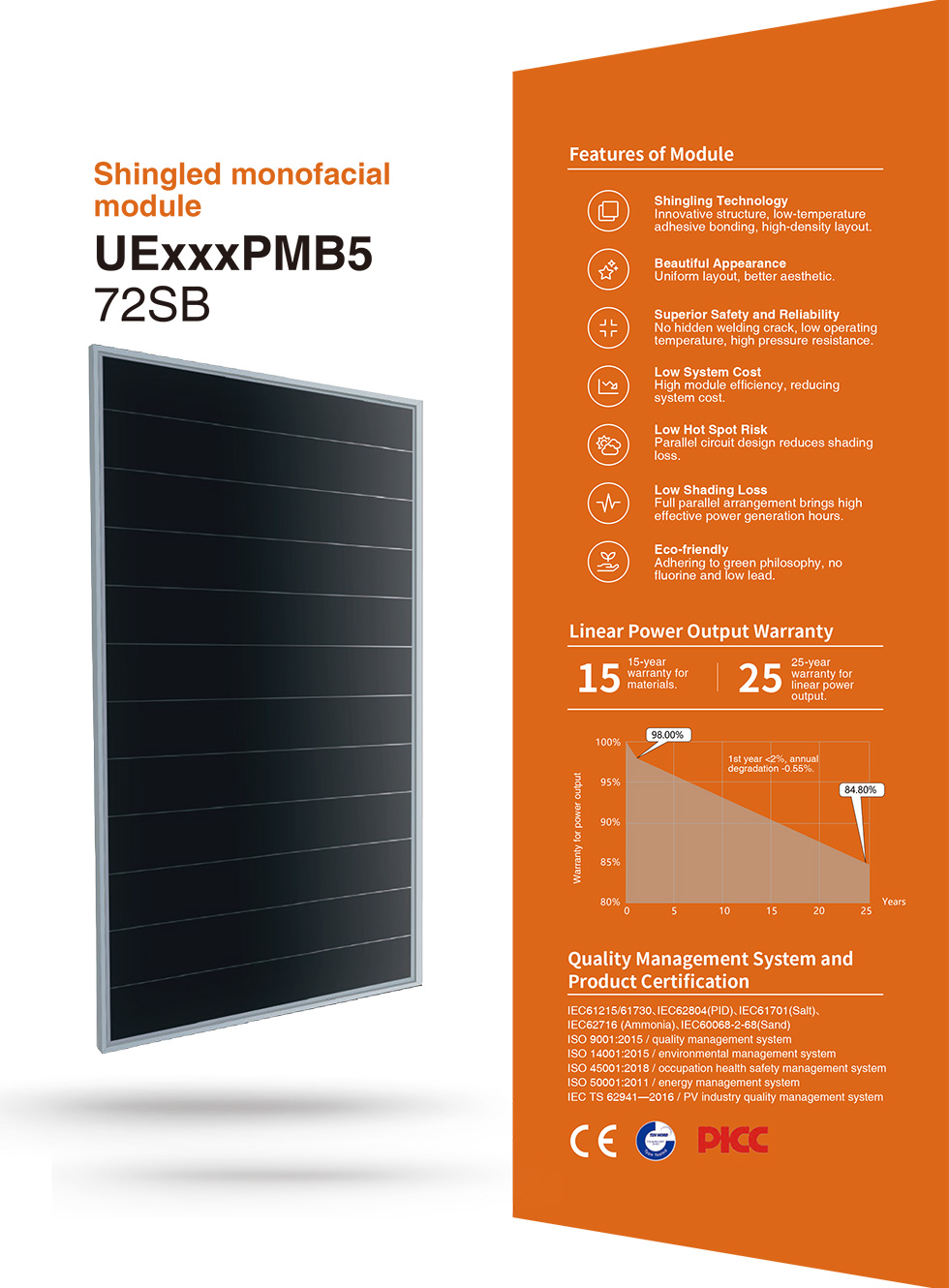

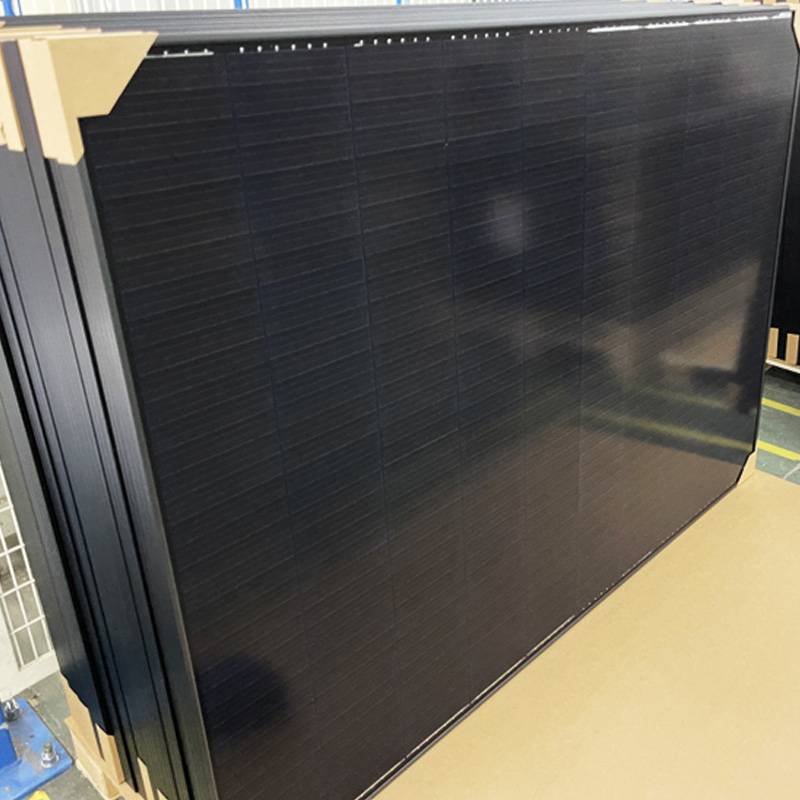

Shingled modules cut solar cells into strips and overlap them inside the framed module.
Intercell gaps are removed, and more silicon cells can be crammed into one module, increasing power output and module efficiency.
Brand :
United Energy Or OEM ServiceMax. Efficiency :
21.3%Number of Cells :
166*166mmDimension :
2056*1134*35mmWeight :
25kgJunction Box :
IP68 Rated, 3 DiodeCable :
4.0mm2, Portrait: 300mm / Landscape: 1300mmWind/Snow Load: :
2400Pa/5400PaConnector :
MC4 CompatiblePower Range :
485-500wWarranty :
25 YearsPayment :
T/T,Credit Card, Paypal, Western UnionCertification :
IEC/CE/TUV/CSA/CEC/ULUnited Energy founded in 2009, National high-tech enterprise,focus on solar panel R&D obtained more than 100 patents.
Quality is the Company Culture of UNITED ENERGY!
1. The hot spot temperature of the half-chip module assembly is lower than the temperature of the same-type full-piece module
assembly by about 25 ° C, which can effectively reduce the hot spot effect of the component.
2. Half-cut module components meet the 1500V system voltage design requirements, which can reduce the system-side cost by about 10%;
3. Effectively reduce the loss of power generation caused by occlusion when there is shadow occlusion and ash accumulation or snow accumulation.
4. Reduce the first year and the average photoinduced attenuation;
5. 100% PID Free.
Electrical Specification
| Model Number | UEPMB5-500 | UEPMB5-490 | UEPMB5-485 |
| Maximum Power (Pmax/W) | 500 | 490 | 485 |
| Open Circuit Voltage (Voc/V) | 46.8 | 46.7 | 46.6 |
| Short Circuit Current (Isc/A) | 13.4 | 13.28 | 13.22 |
| Voltage at Maximum Power (Vmp/V) | 39.0 | 38.9 | 38.8 |
| Current at Maximum Power (Imp/A) | 12.82 | 12.6 | 12.5 |
| Efficiency (%) | 21.3 | 20.9 | 20.7 |
FAQ：
What watts of this panel?
Mono 485w 490W 500W
What dimension of this panel?
2056*1140*35mm
How Many pcs quantity of one container? How much is the loading quantity and shipping method?

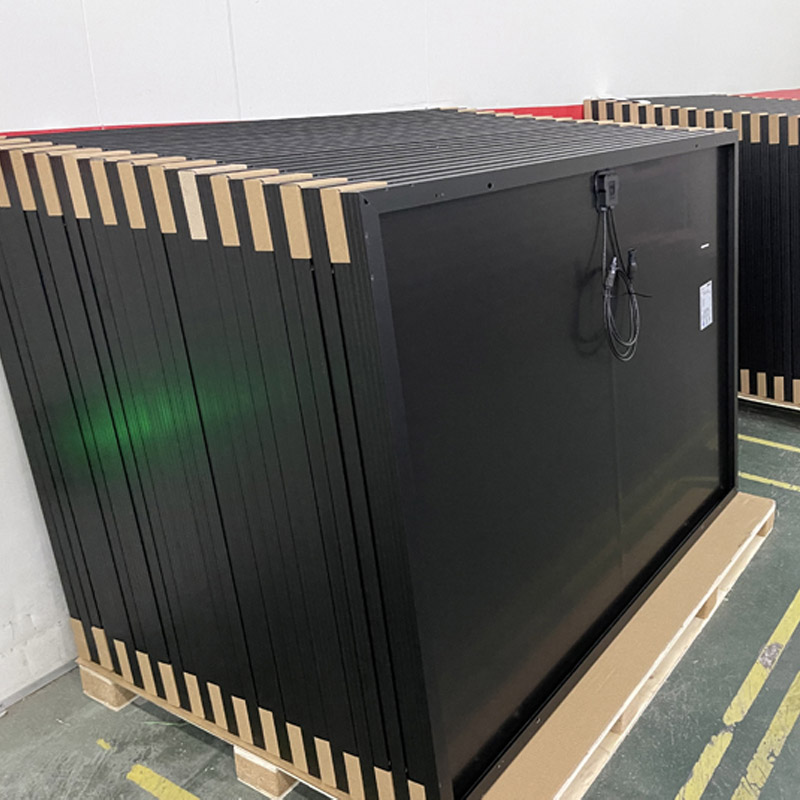

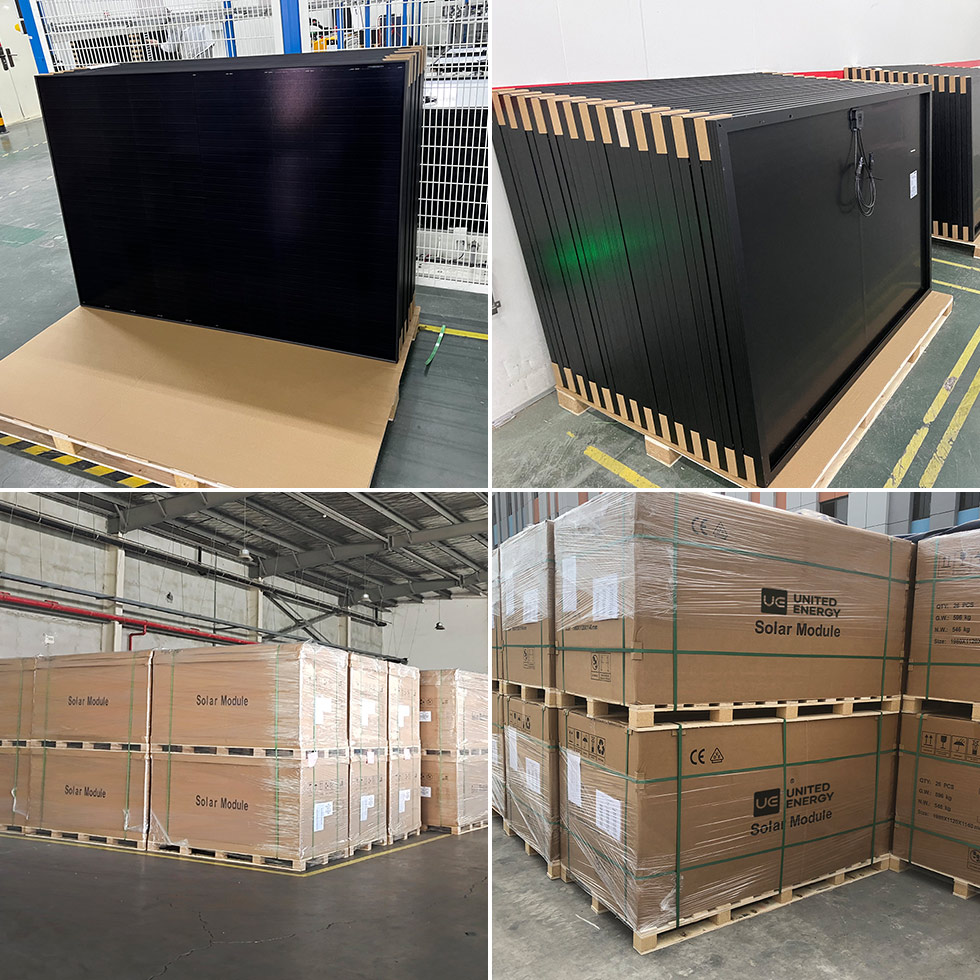

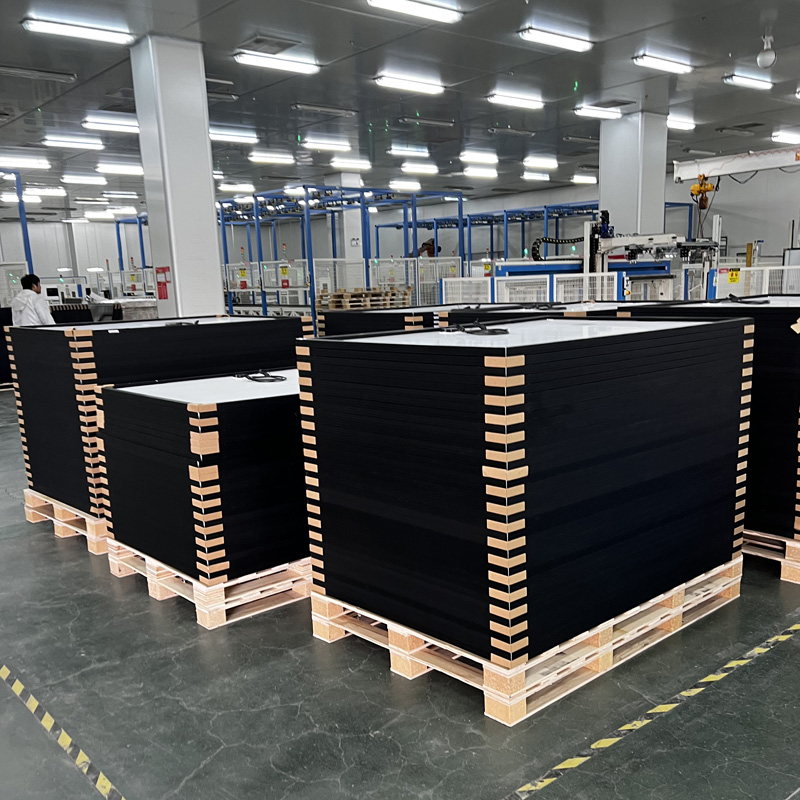

31pcs/pallet 682pcs/40HQ； Shipping normally by sea because of the heavy weight, but we can provide DDP(door-to-door) service if needed.
How long is the Delivery time?
Normally production will takes around 10 workings days, depends on the order quantity.
