Utility-scale solar DC power generated by solar module will be converted into AC power for house loads as priority, the extra energy will be sold to the utility power grid for electric bill credits.
Integrated design automatic feed in loads, batteries,power grids,diesel generators and PV connected system.Integrated EMS function, power supply security and stabilit maximum utilization of renewable energy.
Brand :
United EnergyWarranty :
5/10 YearsCertification :
TUV CE ULBattery Type :
NoApplication :
HomeMounting Type :
Ground Mounting, Roof MountingOutput Voltage :
220V,380V/400V, 208V/230V/240VWork Time :
Depend On Sunshine DurationSolar Panel Type :
Monocrystalline SiliconLoad Power (KW) :
3KW 5KW 10KWOutput Frequency :
50/60HZOnline Monitoring :
Wifi/Lan/GPRSInverter Type :
On GridUnited Energy founded in 2009, National high-tech enterprise,focus on solar panel R&D obtained more than 100 patents.
Quality is the Company Culture of UNITED ENERGY!

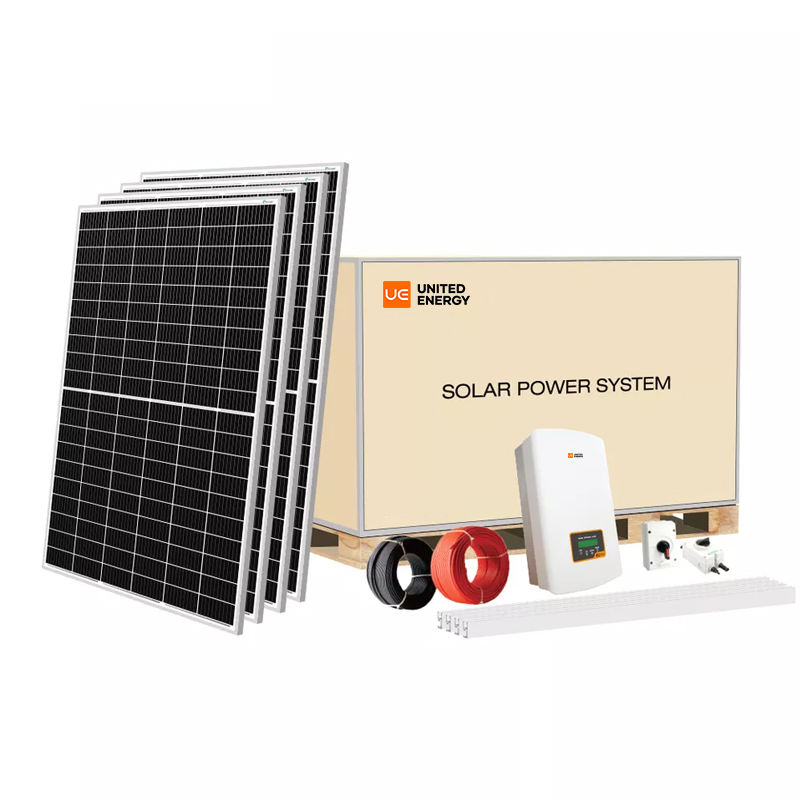

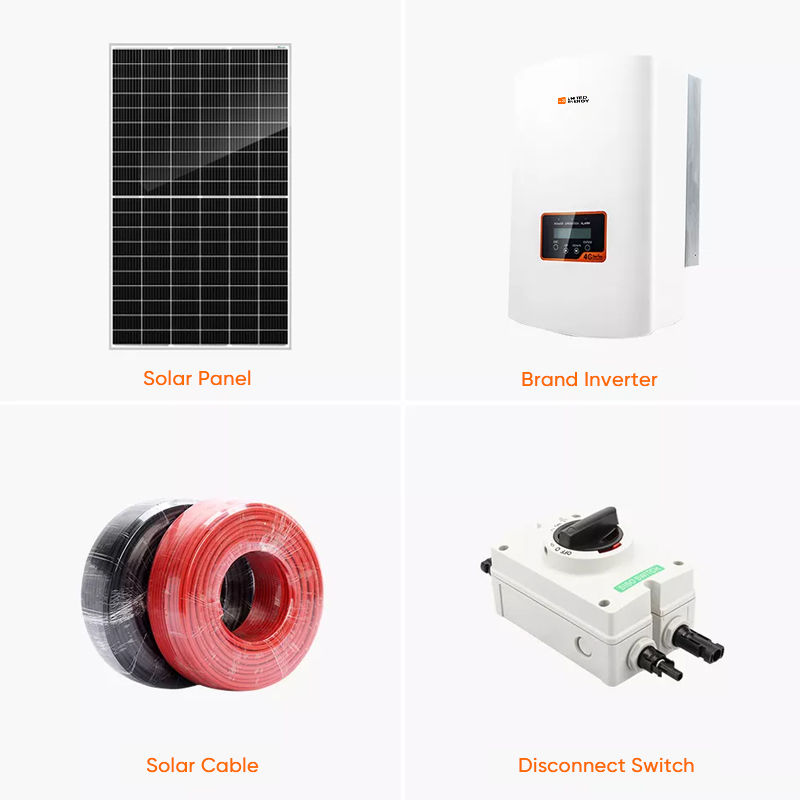

Standard grid-tied solar systems include : Solar Module, Grid-tie inverter, mounting structure and accessories.
On grid system with grid access will allow you to save electricity, lower equipment and installation costs, and better efficiency rates. You can choose more cost effective solution use string inverter, and micro inverter with little higher investment but higher power generation efficiency rates.
United Energy team will design whole solution for you with all accessories which are ready for installation, electric connection diagram and installation scheme service are free of charge.
Configuration Details:
| Components | UE3KW-ON | UE5KW-ON | UE8KW-ON | UE10KW-ON |
| 410W Solar Panel | 8 Piece | 14 Piece | 20 Piece | 26 Piece |
| DC Isolation Switch | 1 Set | 2 Set | 2 Set | 2 Set |
| Grid Tied Inverter | 3KW | 5KW | 8KW | 10KW |
| AC Isolation Switch | 1 Set | 1 Set | 1 Set | 1 Set |
| DC Cable 4mm2 | 100 Meters | 200 Meters | 100 Meters | 200 Meters |
| MC4 Connector | 10 Piece | 10 Piece | 10 Piece | 10 Piece |
| Mounting System | 1 Set | 1 Set | 1 Set | 1 Set |
| PV Tools | 1 Set | 1 Set | 1 Set | 1 Set |
Product Advantage:
1, Save money with bi-direction meter
2, Lower investment compare with Energy Storage System
3, Less material and accessories , easier installation
4, On time Service: Engineer team 7*24 Online
5, Easy transportation: United Energy could not only supply products, also could provide delivery service for you.
FAQ：
The difference between Grid-tied, off-grid, and hybrid solar systems?
1- Grid-tied: DC electricity generated by the solar panels will be converted into AC electricity by the heard of the solar system" inverter". The electricity will be used to feed homeappliances first, then the surplus energy exported to the grid in return for making money or save bill, this is the only type of system do not require battery.
2- Off-grid: Also called stand alone system, commonly used for tural area which are lack of stable grid power, to ensure access to electricity at all times, off- grid system require battery bank for backup.
The biggest difference to on grid is there is no grid access, surplus power could not export to utility grid.
3- Hybrid solar systems is the combination for grid-tied and off-grid solar systems.The power from solar panel is first used to service the home loads, then charge the solar battery. If there is still a surplus of solar energy, it will be exported to the electric grid in return for credits.
Our Sales Engineer is 7/24 Online, welcome your Inquiry to get further details:
